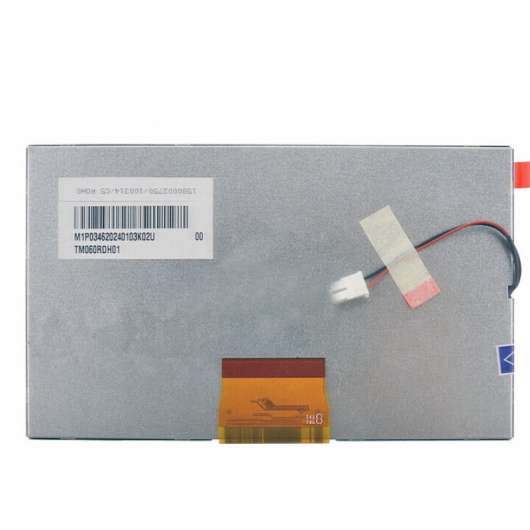

TFT supplier LCD panel 6 inch resolution 800*480 High quality liquid crystal display module TM060RDH01 LCD display

Model	TM060RDH01
Brand	TIANMA
Size	6.0inch
Resolution	800×480
Brightness	400 cd/m² (Typ.)
Perspective	70/70/60/70 (Typ.)
Interface	RGB
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Click For Price

TIANMA TM060RDH01 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM060RDH01
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	6.0”	Designed For	Industrial，Automotive Display，Digital Photo Frame，Portable DVD player
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight，6/8bit, U/D.L/R Reverse，Matte

TIANMA TM060RDH01 Optical Details

Basic Information :	Luminance	400 cd/m² (Min.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	20/30 (Typ./Max.)(Tr+Td) ms
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.305; Wy:0.330	Display Colors	262K/16.2M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6914K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	49%	sRGB	68% coverage
	Adobe RGB	51% coverage	DCI-P3	51% coverage
	Rec.2020	37% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM060RDH01 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480, WVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.0555*0.1538 mm	Pixel Pitch (W*H)	136.4(W)*76.7(H) mm
Physical Size :	Active Viewing(mm)	133.2(W)*73.8(H) mm	Bezel Area (mm)	136.4(W)*76.7(H) mm
Physical Size :	Outline Dim.(mm)	145.5(W)*87.8(H) mm	Depth(mm)	5.4±0.3 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Other Spec :	Weight	113.3g	Surface	Antiglare

TIANMA TM060RDH01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	1.644W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM060RDH01 Interface Details

Signal Systerm :		Parallel RGB (1 ch, 6-bit)				Logic Voltage				0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :	Voltage Input			3.3/9.84/19.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)			Current Input		5/25/0.4/0.4mA (Typ.)(ICC/IVDD/IGH/IGL)
Interface Features :	Position			0.3W (Typ.)			Physical Type		FPC
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
					0.5mm			60pins	1 pcs

TIANMA TM060RDH01 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

3S7P

Position

Edge light type

Exchange

Lamp Shape

Array

Lamp Life

20K(Typ.) (Hours)

Lamp Electrical :

Input Current

140/175mA (Typ./Max.)

Input Voltage

9.6V (Typ.)

Consumption

1.344/1.680W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

JST

BHSR-02VS-1

3.5 mm

2 pins

1 pcs

BLE-2PINS-AC

Backlight Driver :

TIANMA TM060RDH01 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	50 pcs / box	8.656 Kgs	530350250 mm
