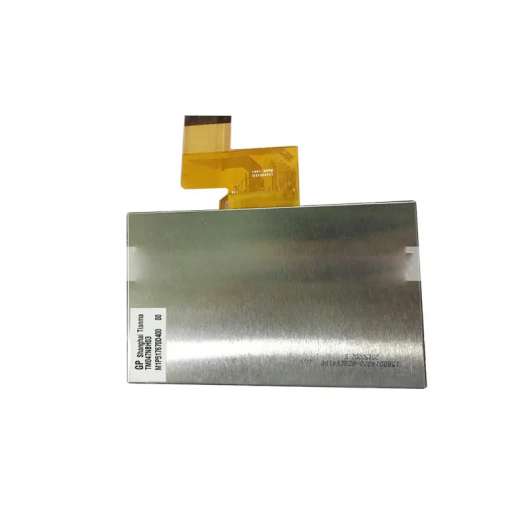

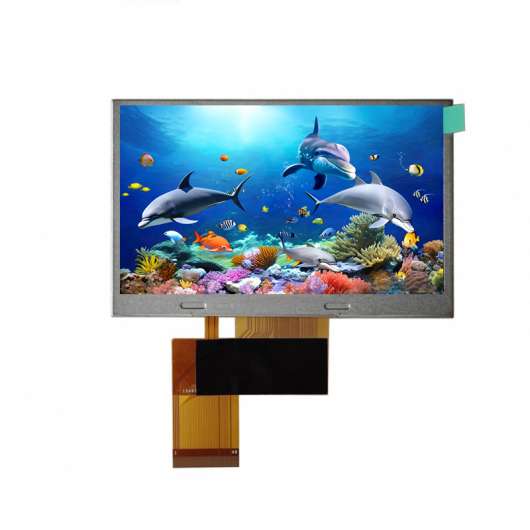

TM047NBH03 Inch 480*272 TFT LCD Display Panel 4 Wire Resistive Touch Screen

TM047NBH03 Inch 480*272 TFT LCD Display Panel 4 Wire Resistive Touch Screen

TIANMA TM047NBH03 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM047NBH03Panel Typea-Si TFT-LCD , LCMAno

Model TM047NBH03
Brand TIANMA
Size 4.7inch
Resolution 480*272
Brightness 280 cd/m²
Perspective 70/70/60/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 60 °C
Production State Discontinued
Click For Price

TIANMA TM047NBH03 Application Details

Basic Detail :Panel BrandTIANMAModel NameTM047NBH03
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.7”Designed ForIndustrial，Portable Navigation，MP3 PMP
Maximum Ratings :OP Temperature-20 ~ 60  °CST Temperature-30 ~ 70  °C
RoHSRoHSVibration Level
Features :WLED Backlight，With Touch


TIANMA TM047NBH03 Optical Details

Basic Information :Luminance280 cd/m²(Min.)Contrast Ratio500:1 (Typ.) (Transmissive)
Good View at12 o'clockResponse Speed25(Typ.)(Tr+Td) ms
Viewing Angle70/70/60/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityWx:0.310; Wy:0.330Display Colors16.7M (8-bit)
Color Temperature6638KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB72% coverage
Adobe RGB54% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM047NBH03  Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272, WQVGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.072*0.216 mmPixel Pitch (W*H)0.216*0.216 mm (H*V)  [117PPI]
Physical Size :Active Viewing(mm)103.68*58.752 mm (H*V)Bezel Area (mm)-
Outline Dim.(mm)114.3*72.5 mm (H*V)Depth(mm)5.0 (Typ.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Touch Screen :Touch Points1 pointTP Signal-
TP ControllerWithout touch controllerTouchscreen4-wire Resistive Touch
Other Spec :Weight76.5g (Typ.)SurfaceClear, Hard coating (3H)


TIANMA TM047NBH03  Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
Time Controller (T-CON)：Embedded T-CON


TIANMA TM047NBH03 Interface Details

Signal Systerm :Parallel RGB (1 ch, 8-bit)Logic Voltage-0.3V≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical :Voltage Input
 3.3V (Typ.)		Current InputTBD
Interface Features :Position85/90mW (Typ./Max.)Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40pins1 pcsDRGB-40P1C8B-120A


TIANMA TM047NBH03 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity5S2PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Typ.) (Hours)
Lamp Electrical :Input Voltage16V (Typ.)Input Current40/50mA (Typ./Max.)
Consumption640mW (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


TIANMA TM047NBH03  Carton Details

Package Box :AmountWeightSize (L*W*H)
112 pcs / box11.5 Kgs530*350*250 mm
