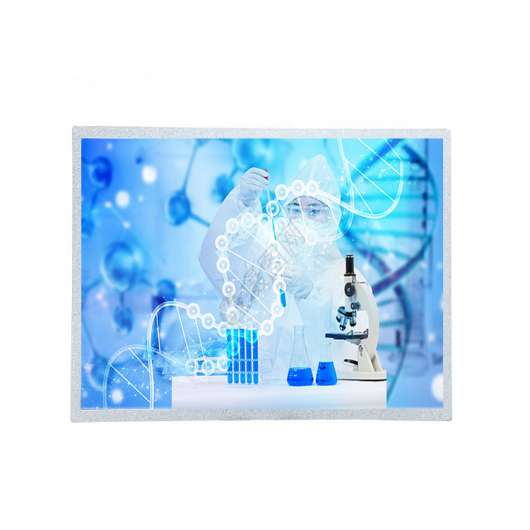

New original 15" TIANMA TM150TDSG81 LCM LCD module 1024*768 350nits WLED eDP

TIANMA TM150TDSG81 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM150TDSG81Panel Typea-Si TFT-LCD , LCMA

TIANMA TM150TDSG81 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM150TDSG81
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-10 ~ 65 °C	ST Temperature	-20 ~ 65 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	Lamp Repaceable，WLED Backlight,With LED Driver, 6/8bit,Matte

TIANMA TM150TDSG81 Optical Details

Basic Information :	Luminance	350 cd/m²(Typ.)	Contrast Ratio	900:1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	15 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.307; Wy:0.313	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	7006K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	61%	sRGB	80% coverage
	Adobe RGB	62% coverage	DCI-P3	64% coverage
	Rec.2020	46% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM150TDSG81 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768 [XGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0990.297 mm (HV)	Pixel Pitch	0.2970.297 mm (HV) [85PPI]
Physical Size :	Active Viewing	304.128228.096 mm (HV)	Bezel Area	307.4231.3 mm (HV)
Physical Size :	Outline Dim.	326.5253.5 mm (HV)	Outline Depth	10.0 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	TBD	Surface	Antiglare

TIANMA TM150TDSG81 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No

TIANMA TM150TDSG81 Interface Details

TIANMA TM150TDSG81 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		-	Position		Edge light type
	Exchange	Replaceable		Lamp Shape		-	Lamp Life		30K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input		10.8/12.0/12.6V (Min./Typ./Max.)		Current Input			-

TIANMA TM150TDSG81 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	14 pcs / box	-	438402464 mm
