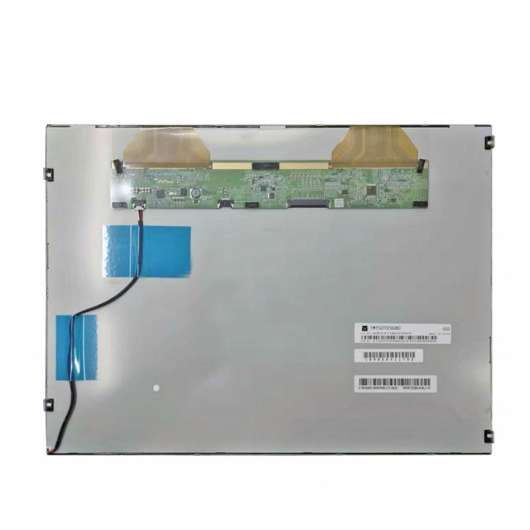

TIANMA TM150TDSG80 15" inch 1024x768 LCD screen display for Industrial

TIANMA TM150TDSG80 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM150TDSG80Panel Typea-Si TFT-LCD , LCMA

Model	TM150TDSG80
Brand	TIANMA
Size	15inch
Resolution	1024*768
Brightness	350cd/m2
Perspective	80/80/80/80
Interface	LVDS
Operating Temp	-10 ~ 65 °C
Production State	In Production

Click For Price

TIANMA TM150TDSG80 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM150TDSG80
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-10 ~ 65 °C	ST Temperature	-20 ~ 65 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	Lamp Repaceable，WLED Backlight,With LED Driver, 6/8bit,Matte

TIANMA TM150TDSG80 Optical Details

Basic Information :	Luminance	350 cd/m²(Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	8 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)

TIANMA TM150TDSG80 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768 [XGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0990.297 mm (HV)	Pixel Pitch	0.2970.297 mm (HV) [85PPI]
Physical Size :	Active Viewing(mm)	304.128228.096 mm (HV)	Bezel Area (mm)	307.4231.3 mm (HV)
Physical Size :	Outline Dim. (mm)	326.5253.5 mm (HV)	Outline Depth	10.0 (Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	TBD	Surface	Antiglare

TIANMA TM150TDSG80 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	No

TIANMA TM150TDSG80 Interface Details

Signal Systerm :		LVDS (2 ch, 6-bit)				Logic Voltage		-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input	-
Interface Features :	Position			-			Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch		Pins	Amount	Pin Assignment
	P-TWO		185083-20121		1.25mm		20pins	1 pcs	LVDS-20P1C8B-080A

TIANMA TM150TDSG80 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Replaceable

Lamp Shape

Lamp Life

30K(Typ.) Hours

Interface Features :

Position

Physical Type

Connector

Lamp Driver

With LED Driver

Interface Detail

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

STM

MSB24038P5

1.25 mm

5pins

1 pcs

Driver Electrical :

Voltage Input

12.0V

Current Input

TIANMA TM150TDSG80 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	14 pcs / box	-	438402464 mm
