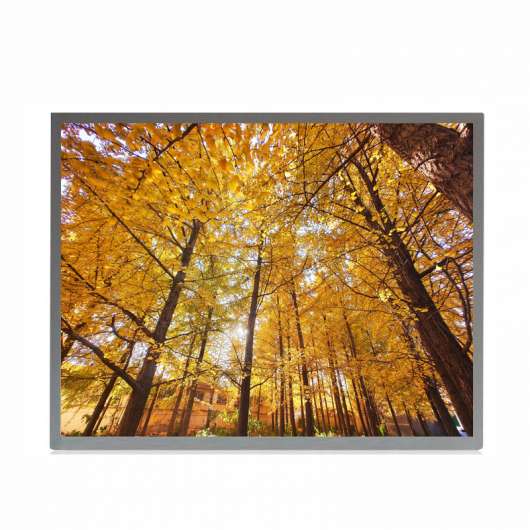

TIANMA TM150TDS50 touch screen LCD display TFT Module 15" 1024x768(XGA)

TIANMA TM150TDS50 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM150TDS50Panel Typea-Si TFT-LCD , LCMAno

Model	TM150TDS50
Brand	TIANMA
Size	15inch
Resolution	1024*768
Brightness	400cd/m2
Perspective	80/80/80/80
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	Discontinued

Click For Price

TIANMA TM150TDS50 Application Details

Basic Detail :	Panel Brand	TIANMA	Model Name	TM150TDS50
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight，Life>=50K hours,With LED Driver,6/8bit,Matte

TIANMA TM150TDS50 Optical Details

Basic Information :	Luminance	400 cd/m²(Typ.)	Contrast Ratio	600:1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	8 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	63%	sRGB	80% coverage
	Adobe RGB	62% coverage	DCI-P3	65% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM150TDS50 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0990.297 (mm) (HV)	Pixel Pitch	0.2970.297 (mm) (HV) [85PPI]
Physical Size :	Active Viewing(mm)	304.128(H) *228.096(V)	Bezel Area (mm)	307.4(H) *231.3(V)
Physical Size :	Outline Dim. (mm)	326.5(H) *253.5(V)	Outline Depth	11.8±0.3 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	1.00Kgs (Typ.)	Surface	Antiglare

TIANMA TM150TDS50 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No

TIANMA TM150TDS50 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage		-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input	500/550mA (Typ./Max.)
Interface Features :	Position			-			Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch		Pins	Amount	Pin Assignment
	HRS		DF14H-20S-1.25C		1.25mm		20pins	1 pcs	LVDS-20P1C8B-010K

TIANMA TM150TDS50 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

STM

MSB24038P5

1.25 mm

5pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Current

480/650mA (Typ./Max.)

Input Voltage

12.0V (Typ.)

TIANMA TM150TDS50 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	10 pcs / box	11.7±0.6 Kgs	378343430 mm
