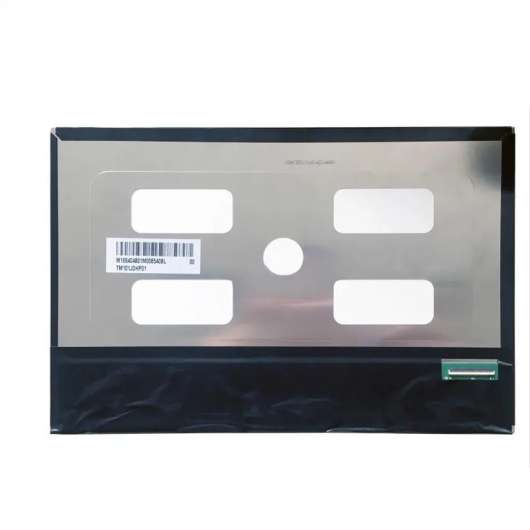

TM101JDHP01 10.1 inch 1280*800 IPS Lcd Screen Lcd Display Lcd Panel Lvds 40 Pins

TM101JDHP01 10.1 inch 1280*800 IPS Lcd Screen Lcd Display Lcd Panel Lvds 40 Pins

TIANMA TM101JDHP01 Application DetailsBasic Detail :Panel BrandTIANMAModel NameTM101JDHP01Panel Typea-Si TFT-LCD , LCMA

Model TM101JDHP01
Brand TIANMA
Size 10.1inch
Resolution 1280*800
Brightness 400cd/m2
Perspective 85/85/85/85 (Typ.)
Interface LVDS
Operating Temp -10 ~ 50 °C
Production State In Production
Click For Price

TIANMA TM101JDHP01  Application Details

Basic Detail :Panel BrandTIANMAModel NameTM101JDHP01
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size10.1”Designed ForIndustrial
Maximum Ratings :OP Temperature-10 ~ 50 °C ST Temperature-20 ~ 60 °C
RoHSRoHSVibration Level
Features :WLED Backlight


TIANMA TM101JDHP014 Optical Details

Basic Information :Luminance400 cd/m²(Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
Good View atSymmetryResponse Speed10/15 (Typ.)(Tr/Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)Operating ModeSFT, Normally Black, Transmissive
Color Performance :ChromaticityWx:0.300; Wy:0.324Display Colors16.7M (8-bit)

Color Temperature		7289KWhite Variation1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :NTSC Ratio52%sRGB72% coverage
Adobe RGB54% coverageDCI-P354% coverage
Rec.202039% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


TIANMA TM101JDHP01 Mechanical Details

Pixel Features :Number of Pixel1280(RGB)*800, WXGAArrangementRGB Vertical Stripe
Dot Pitch (W*H)0.0565*0.1695 mm Pixel Pitch (W*H)0.1695*0.1695 mm (H*V)  [149PPI]
Physical Size :Active Viewing(mm)216.96*135.6 mm (H*V)Bezel Area (mm)-
Outline Dim.(mm)229.46*149.1 mm (H*V)Depth(mm)2.55/4.6 (Typ./Max.) mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:10(H:V)OrientationLandscape type
Holes & Brackets :Without
Other Spec :Weight180g (Typ.)SurfaceHard coating


TIANMA TM101JDHP01 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No
D-IC Detail :COG Built-in ST5821CA*3 + ST5084CA*1


TIANMA TM101JDHP01  Interface Details

Signal Systerm :LVDS (1 ch, 8-bit)Logic Voltage-
Signal Electrical :Voltage Input3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)Current Input54.1/47.6/0.66/0.66mA (Typ.)(IDD/AIDD/IGH/IGL)
Interface Features :Position-Physical TypeConnector
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
VigorconnF62240-H1210A0.5mm40pins1 pcs


TIANMA TM101JDHP01 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S11PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life30K(Typ.) (Hours)
Lamp Electrical :Input Current220/330mA (Typ./Max.)Input Voltage9.0/9.6/10.8V (Min./Typ./Max.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


TIANMA TM101JDHP01  Packing Details

Package Box :QuantityWeightBox Size
36 pcs / box12.6 Kgs544*365*250 mm  (L*W*H)
