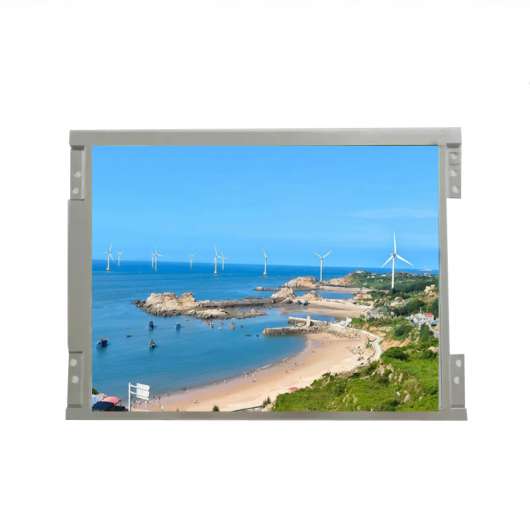

8 4-Inch 640*480 TFT LCD Screen 40 pins RGB 4-Wire Resistive Touch Model TCG084VGLAAAFA-AA00 lcd panel For Kyocera
| Model | TCG084VGLAAAFA-AA00 |
| Brand | Kyocera |
| Size | 8.4inch |
| Resolution | 640*480 |
| Brightness | 360 cd/m² (Typ.) |
| Perspective | 65/65/60/65 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG084VGLAAAFA-AA00 Application Details
Basic Information :
Brand
Kyocera
Model
TCG084VGLAAAFA-AA00
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
8.4"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Rating
-
Typical Features :
With Touch，WLED Backlight，Life≥100K hours，U/D,L/R Reverse，Matte
2、Kyocera TCG084VGLAAAFA-AA00 Mechanical Details
Pixel Features :
Resolution
640(RGB)×480 [VGA]
Dot Pitch
0.089×0.267mm (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.267×0.267 [95PPI]
Mechanical Size :
Active Area (mm)
170.88(H) × 128.16(V)
Bezel Area (mm)
174.4(W)×131.8(H) mm
Outline Dim.
199.5×147.4 mm (H×V)
Outline Depth (mm)
10.8/11.55 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
4:3 (H:V)
Orientation
Landscape type
Touchscreen :
Touch Points
1 point
TP Controller & Signal
-
OS System
-
Touch Tech
4-wire Resistive Touch
Holes & Brackets :
Face mounting holes (8-Φ3.4) on left, right bezel
Other Detail :
Mass
400g (Typ.)
Surface
Antiglare, Hard coating (2H)
3、Kyocera TCG084VGLAAAFA-AA00 Optical Details
Basic Information :
Luminance(cd/m²)
360 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
65/65/60/65 (Typ.)(CR≥10)
Display Mode
TN, Normally White
Best View on
6 o'clock
Response(ms)
10/20 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
X:0.305; Y:0.315
Display Colors
262K (6-bit)
Color Temperature
7106K
White Uniformity
-
1931 Color Gamut :
NTSC Ratio
49%
sRGB
69% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG084VGLAAAFA-AA00 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON
5、Kyocera TCG084VGLAAAFA-AA00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
160/240mA (Typ./Max.)
Logic Voltage
0≤VIL≤0.8VDD; 2.0VDD≤VIH≤VDD
Signal Type :
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
04-6240-040-023-846+
0.5mm
40pins
1 pcs
6、Kyocera TCG084VGLAAAFA-AA00 Backlight Details
Backlight Features:
Shape
2 strings
Type
WLED
Position
Edge light type
Replacement
-
Quantity
2 strings
Life Time
100K(Typ.) (Hours)
Driver Electrical :
Voltage Input
21.0/24.7V (Typ./Max.)
Current Input
60mA (Typ.)
Interface Features :
Position
-
Backlight Driver
No
Type
