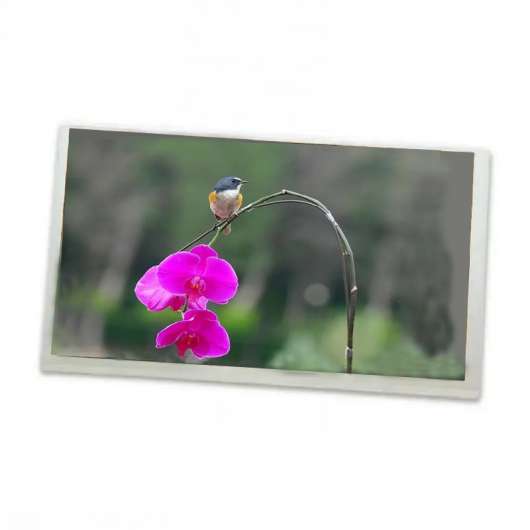

TCG070WVLPEANN-AN20 KYOCERA 7inch Original industrial grade LCD Display Screen LVDS TFT LCD Panel ，TCG070WVLPEANN-AN20 7-Inch 800*480 TFT LCD Modules 350nits
| Model | TCG070WVLPEANN-AN20 |
| Brand | Kyocera |
| Size | 7.0inch |
| Resolution | 800×480 |
| Brightness | 350 cd/m² (Typ.) |
| Perspective | 80/80/60/80 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG070WVLPEANN-AN20 Application Details
Basic Information :
Brand
Kyocera
Model
TCG070WVLPEANN-AN20
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
7.0"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight， Life≥70K hours，With LED Driver，180°Reverse，6/8 bit，Matte
2、Kyocera TCG070WVLPEANN-AN20 Mechanical Details
Pixel Features :
Resolution
800(RGB)×480 [WVGA]
Dot Pitch
0.0635×0.1905 mm (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :
Active Area
152.4×91.44 mm (H×V)
Bezel Area
154.4×93.4 mm (H×V)
Outline Dim.
165×104.4 mm (H×V)
Outline Depth
8.6±0.5 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
15:9 (H:V)
Orientation
Landscape type
Holes & Brackets :
Without
Other Detail :
Mass
205g (Typ.)
Surface
Antiglare
3、Kyocera TCG070WVLPEANN-AN20 Optical Details
Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
5/25 (Typ.)(Tr/Td) (ms)
Color Performance :
White Coordinate
Wx:0.290; Wy:0.305
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
8405K
White Uniformity
1931 Color Gamut :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG070WVLPEANN-AN20 Electronics Details
Frame Rate :
60Hz
Power Consumption :
2.64W (Typ.)
Reverse Scan :
Yes (180°)
5、Kyocera TCG070WVLPEANN-AN20 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
200/260mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6/8-bit)
Consumption
0.66W (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
MDF76GW-30S-1H
1.0mm
30pins
1 pcs
6、Kyocera TCG070WVLPEANN-AN20 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
-
Lamp Electrical :
Voltage Input
12.0±1.2V
Current Input
165/280mA (Typ./Max.)
Power Consumption
1.98W (Typ.)
