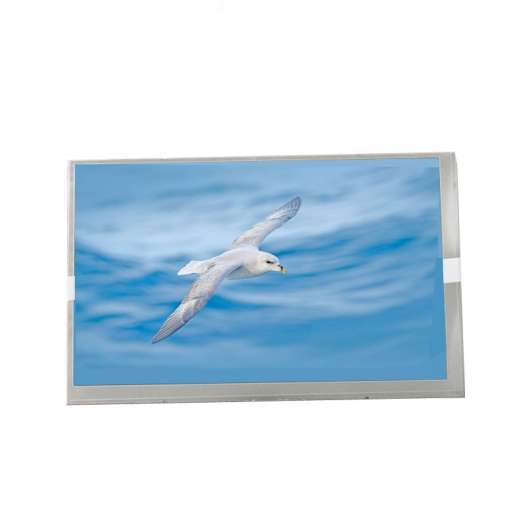

Kyocera 7 inch TFT Display New LCD Screen panel TCG070WVLPCANN-AN00 With 800*480
| Model | TCG070WVLPCANN-AN00 |
| Brand | Kyocera |
| Size | 7.0inch |
| Resolution | 800×480 |
| Brightness | 350 cd/m² (Typ.) |
| Perspective | 80/80/60/80 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG070WVLPCANN-AN00 Application Details
Basic Information :
Brand
Kyocera
Model
TCG070WVLPCANN-AN00
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
7.0"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight， Life≥70K hours，180°Reverse，Matte
2、Kyocera TCG070WVLPCANN-AN00 Mechanical Details
Pixel Features :
Resolution
800(RGB)×480 [WVGA]
Dot Pitch
0.0635×0.1905 mm (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.1905×0.1905 mm (H×V) [133PPI]
Mechanical Size :
Active Area
152.4×91.44 mm (H×V)
Bezel Area
154.4×93.4 mm (H×V)
Outline Dim.
165×104.4 mm (H×V)
Outline Depth
8.2/8.5 (Typ./Max.) mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
15:9 (H:V)
Orientation
Landscape type
Holes & Brackets :
Without
Other Detail :
Mass
195g (Typ.)
Surface
Antiglare
3、Kyocera TCG070WVLPCANN-AN00 Optical Details
Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/60/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
12 o'clock
Response(ms)
5/25 (Typ.)(Tr/Td) (ms)
Color Performance :
White Coordinate
Wx:0.290; Wy:0.305
Display Colors
262K (6-bit)
Color Temperature
8405K
White Uniformity
1.43 (Max.)(5 points)
1931 Color Gamut :
NTSC Ratio
49%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG070WVLPCANN-AN00 Electronics Details
Frame Rate :
60Hz
Time Controller (T-CON) :
Embedded T-CON
Reverse Scan :
Yes (180°)
5、Kyocera TCG070WVLPCANN-AN00 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
180/235mA (Typ./Max.)
Signal Type :
Parallel RGB (1 ch, 6-bit)
Consumption
0.594W (Typ.)
Logic Voltage
0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
IMSA-9637S-40C-GF
0.5mm
40pins
1 pcs
6、Kyocera TCG070WVLPCANN-AN00 Backlight Details
Backlight Features:
Shape
2 strings
Type
WLED
Position
Edge light type
Replacement
-
Quantity
2 strings
Life Time
70K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in signal interface
Lamp Electrical :
Voltage Input
12.0/14.1V (Typ./Max.)
Current Input
60mA (Typ.)
Backlight Driver :
No
