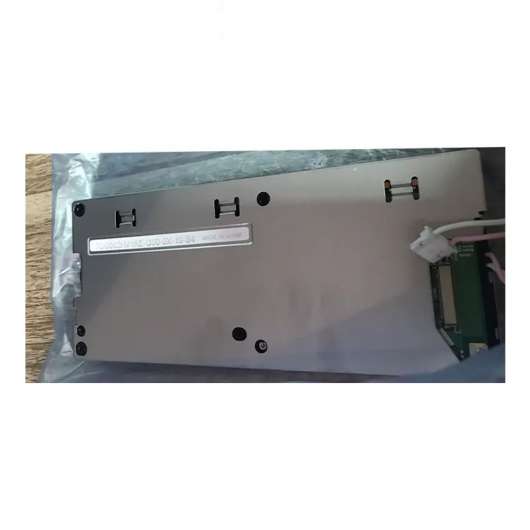

6 2 inch KYOCERA 640x240 500nits LVDS cable Ultra wide lcd module IPS TFT LCD Touch Screen display TCG062HVLQAVNN-GN20 lcd panel
| Model | TCG062HVLQAVNN-GN20 |
| Brand | Kyocera |
| Size | 6.2inch |
| Resolution | 640×240 |
| Brightness | 500 cd/m² (Typ.) |
| Perspective | 85/85/85/85 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG062HVLQAVNN-GN20 Application Details
Basic Information :
Brand
Kyocera
Model
TCG062HVLQAVNN-GN20
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
6.2"
Environment :
Storage Temp.
-30 ~~ 80 °C
Operating Temp.
-20 ~~ 70 °C
RoHS
RoHS
Typical Features :
WLED Backlight， With LED Driver，Bar Display，180°Reverse
2、Kyocera TCG062HVLQAVNN-GN20 Mechanical Details
Pixel Features :
Resolution
640(RGB)×240, HVGA
Dot Pitch (W×H)
0.077×0.231 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.231×0.231 mm [109PPI]
Mechanical Size :
Active Area
147.84(W)×55.44(H) mm
Overall Dim.
173(W)×70(H) mm
Bezel Opening
149.8(H) × 57.4(V)
Overall Depth
4.2/7.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
8:3
Orientation
Landscape type
Other Detail :
Mass
115g (Typ.)
Surface
-
3、Kyocera TCG062HVLQAVNN-GN20 Optical Details
Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥5)
Display Mode
AWV, Normally Black, Transmissive
Best View on
-
Response(ms)
18/12 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.305; Wy:0.325
Display Colors
262K (6-bit)
Color Temperature
6974K
White Uniformity
-
1931 Color Gamut :
NTSC Ratio
50%
sRGB
70% coverage
Adobe RGB
52% coverage
DCI-P3
52% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG062HVLQAVNN-GN20 Electronics Details
Reverse Scan :
60Hz
Reverse Scan :
Yes (180°)
5、Kyocera TCG062HVLQAVNN-GN20 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
80/105mA (Typ./Max.)
Signal Type :
LVDS (1 ch, 6-bit)
Consumption
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
IRISO
MDF76GW-30S-1H
1.0mm
30pins
1 pcs
6、Kyocera TCG062HVLQAVNN-GN20 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
40K(Typ.) (Hours)
Interface Features :
Position
-
Type
Included in signal interface
Lamp Electrical :
Voltage Input
3.0/5.5V (Min./Max.)
Current Input
220/450mA (Min./Max.)
Backlight Driver :
With LED Driver
