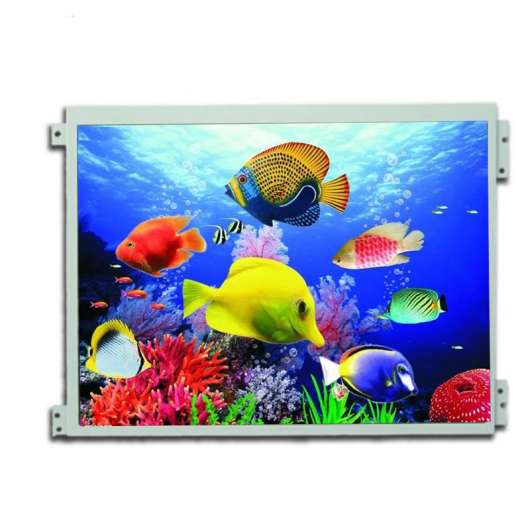

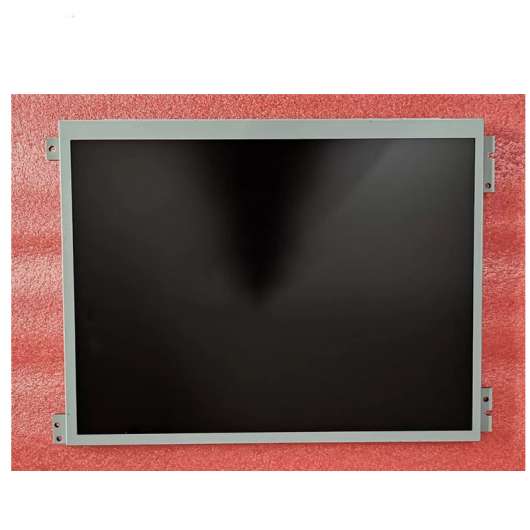

Kyocera TCG121SVLPAANN-AN2012 1 inch Antiglare 800×600 AWV WLED 30 pins lcd monitor screen tft lcd panel lcd display
| Model | TCG121SVLPAANN-AN20 |
| Brand | Kyocera |
| Size | 12.1inch |
| Resolution | 800×600 |
| Brightness | 500 cd/m² (Typ.) |
| Perspective | 80/80/80/80 (Typ.) |
| Interface | LVDS |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、KyoceraTCG121SVLPAANN-AN20 Application Details
Basic Information :
Brand
Kyocera
Model
TCG121SVLPAANN-AN20
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
12.1"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~70 °C
RoHS
RoHS
Vibration Rating
-
Typical Features :
WLED Backlight，Life≥70K hours，With LED Driver，Matte
2、Kyocera TCG121SVLPAANN-AN20 Mechanical Details
Pixel Features :
Resolution
800(RGB)×600, SVGA
Dot Pitch(mm)
0.1025×0.3075 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch (mm)
0.3075×0.3075 (H×V) [82PPI]
Mechanical Size :
Active Area
246×184.5 mm (H×V)
Bezel Area
249.0×187.5 mm (H×V)
Outline Dimension .
278.3×207.5 mm (H×V)
Outline Depth
9.5±0.5 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
4:3 (W : H)
Orientation
Landscape type
Holes & Brackets :
Face mounting holes (4-Φ3.4, 3-R1.7) on left, right slugs
Other Detail :
Mass
645g (Typ.)
Surface
Antiglare
3、Kyocera TCG121SVLPAANN-AN20 Optical Details
Basic Information :
Luminance(cd/m²)
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
4/22 (Typ.)(Tr/Td) ms
Color Performance :
White Coordinate
Wx:0.300; Wy:0.310
Display Colors
16.2M (6-bit + FRC)
Color Temperature
7525K
White Uniformity
-
1931 Color Gamut :
NTSC Ratio
54%
sRGB
71% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG121SVLPAANN-AN20 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
5、Kyocera TCG121SVLPAANN-AN20 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
280/340mA (Typ./Max.)
Signal Type :
LVDS (1 ch,8-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-X30SSLA-HF
1.0mm
30pins
1 pcs
LVDS-30P1C8B-274A
6、Kyocera TCG121SVLPAANN-AN20 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
70K(Typ.) (Hours)
Consumption
-
Interface Features :
Position
-
Backlight Driver
With LED Driver
Type
Included in signal interface
Lamp Electrical :
Voltage Input
12.0±1.2V
Current Input
400/600mA (Typ./Max.)
