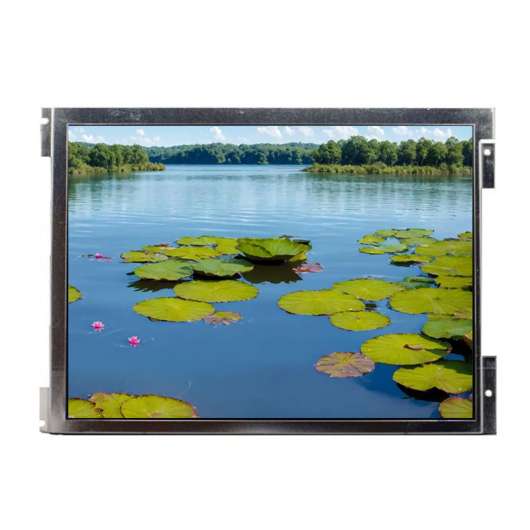

Kyocera TCG104VGLABANN-AN50 High Brightness 10 4 Inch 640x480 VGA LCD Panel Original Kyocera TFT 40 pins RGB LCD Touch Screen 800nits Display
| Model | TCG104VGLABANN-AN50 |
| Brand | Kyocera |
| Size | 10.4inch |
| Resolution | 640×480 |
| Brightness | 800 cd/m² (Typ.) |
| Perspective | 70/70/60/70 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG104VGLABANN-AN50 Application Details
Basic Information :
Brand
Kyocera
Model
TCG104VGLABANN-AN50
Type
LCM a-Si TFT-LCD
Used For
Industrial，Outdoor High Brightness
Screen Size
10.4"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Rating
-
Typical Features :
Hight Brightness，WLED Backlight，Life≥70K hours，U/D,L/R Reverse，Matte
2、Kyocera TCG104VGLABANN-AN50 Mechanical Details
Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(W×H)
0.110×0.330 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.330×0.330 mm [76PPI]
Mechanical Size :
Active Area (W×H)
211.2×158.4 mm
Bezel Area (W×H).
215.4×162.2 mm
Outline Dimension (W×H)
240.7×180.2 mm
Outline Depth (mm)
9.0±0.5 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
4:3 (W : H)
Orientation
Landscape type
Holes & Brackets :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :
Mass
470g (Typ.)
Surface
Antiglare
3、Kyocera TCG104VGLABANN-AN50 Optical Details
Basic Information :
Luminance(cd/m²)
800 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
6 o'clock
Response(ms)
10/20 (Typ.)(Tr/Td) (ms)
Color Performance :
White Coordinate
X:0.305; Y:0.315
Display Colors
262K (6-bit)
Color Temperature
7106K
White Uniformity
1931 Color Gamut :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4、Kyocera TCG104VGLABANN-AN50 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON
5、Kyocera TCG104VGLABANN-AN50 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
150/185mA (Typ./Max.)
Voltage for Display Signals :
0≤VIL≤0.8VDD; 2.0VDD≤VIH≤VDD
Signal Type :
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
04-6240-040-023-846+
0.5mm
40pins
1 pcs
6、Kyocera TCG104VGLABANN-AN50 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
3 strings
Life Time
70K(Typ.) (Hours)
WLED Electrical :
Current Input
60mA (Typ.)
Voltage Input
21.5/23.8V (Typ./Max.)
Consumption
-
Interface Features :
Position
-
Backlight Driver
No
Type
Included in signal interface
