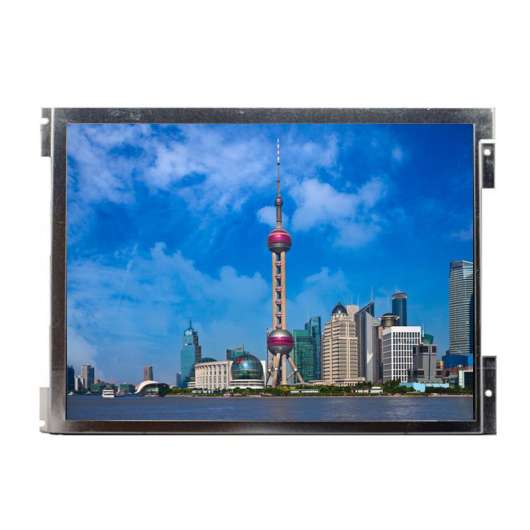

Kyocera TCG104VGLAAAFA-AA20 10 4 inch display touch screen tft display 640*480 lcd screen
| Model | TCG104VGLAAAFA-AA20 |
| Brand | Kyocera |
| Size | 10.4inch |
| Resolution | 640*480 |
| Brightness | 320 cd/m² (Typ.) |
| Perspective | 70/70/60/70 (Typ.) |
| Interface | RGB |
| Operating Temp | -20 ~ 70 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Kyocera TCG104VGLAAAFA-AA20 Application Details
Basic Information :
Brand
Kyocera
Model
TCG104VGLAAAFA-AA20
Type
LCM a-Si TFT-LCD
Used For
Industrial
Screen Size
10.4"
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS
RoHS
Vibration Rating
-
Typical Features :
With Touch，WLED Backlight，Life≥100K hours，With LED Driver，U/D,L/R Reverse，Matte
2、Kyocera TCG104VGLAAAFA-AA20 Mechanical Details
Pixel Features :
Resolution
640(RGB)×480, VGA
Dot Pitch(W×H)
0.110×0.330 mm
Pixel Format
RGB Vertical Stripe
Pixel Pitch (W×H)
0.330×0.330 mm [76PPI]
Mechanical Size :
Active Area (W×H)
211.2×158.4 mm
Bezel Area (W×H).
215.4×162.2 mm
Outline Dimension
240.7×180.2 mm (H×V)
Outline Depth (mm)
10.8±0.75 mm
Outline Features :
Form Style
Flat Rectangle
Outline Shape
Aspect Ratio (W:H)
4:3 (W : H)
Orientation
Landscape type
Touch Screen :
Touch Points
1 point
TP Signal
-
TP Controller
Without controller
Touchscreen
4-wire Resistive Touch
Holes & Brackets :
Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :
Mass
580g (Typ.)
Surface
Antiglare, Hard coating (2H)
3、Kyocera TCG104VGLAAAFA-AA20 Optical Details
Basic Information :
Luminance(cd/m²)
320 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
-
Response(ms)
10/20 (Typ.)(Tr/Td) ms
Color Performance :
White Coordinate
Wx:0.305; Wy:0.315
Display Colors
262K (6-bit)
Color Temperature
7106K
White Uniformity
1931 Color Gamut :
NTSC Ratio
48%
sRGB
68% coverage
Adobe RGB
51% coverage
DCI-P3
50% coverage
Rec.2020
36% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、Kyocera TCG104VGLAAAFA-AA20 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Time Controller (T-CON) :
Embedded T-CON
5、Kyocera TCG104VGLAAAFA-AA20 Interface Details
Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
150/185mA (Typ./Max.)
Logic Voltage
0≤VIL≤0.8V; 2.3V≤VIH≤VIN
Signal Type :
Parallel RGB (1 ch, 6-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
Kyocera Elco
04-6240-040-023-846+
0.5mm
40pins
1 pcs
6、Kyocera TCG104VGLAAAFA-AA20 Backlight Details
Backlight Features:
Shape
-
Type
WLED
Position
Edge light type
Replacement
-
Quantity
-
Life Time
100K(Typ.) (Hours)
Consumption
-
Interface Features :
Position
-
Backlight Driver
With LED Driver
Type
Included in signal interface
Driver Electrical :
Voltage Supply
12.0±1.2V
Current Supply
290/450mA (Typ./Max.)
