Chimei Innolux AT080TN64 8 inch 800x480 RGB Interface 450 nits LCD Display

Chimei Innolux AT080TN64 8 inch 800x480 RGB Interface 450 nits LCD Display

Chimei InnoluxAT080TN64 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameAT080TN64Panel Typea-Si TFT

Model AT080TN64
Brand INNOLUX
Size 8.0inch
Resolution 800*480
Brightness 450cd/m²
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -30 ~ 85 °C
Production State In Production
Click For Price

Chimei Innolux AT080TN64 Application Details

Basic Detail :Panel BrandINNOLUX/CHI MEIModel NameAT080TN64
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size8.0”Designed ForAutomotive Display
Maximum Ratings :OP Temperature-30 ~ 85  °C ST Temperature-30 ~ 85  °C
RoHSRoHSVibration Level
Features :Wide Temperature，WLED Backlight，U/D.L/R Reverse，6/8bit，Matte


Chimei Innolux AT080TN64 Optical Details

Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors262K/16.2M (6-bit / 6-bit + Dithering)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


Chimei Innolux AT080TN64 Mechanical Details

Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
Dot Pitch (mm)0.0736*0.2070 (H*V)Pixel Pitch (W*H) (mm)0.2208*0.2070 (H*V)  [116PPI]
Physical Size :Active Viewing(mm)176.64(H) *99.36(V)Bezel Area (mm)180.1(H) × 103.4(V)
Outline Dim.(mm)192.8(H) *116.9(V)Depth(mm)6.4±0.3
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Other Spec :Weight245g (Typ.)SurfaceAntiglare


Chimei Innolux  AT080TN64 Electronics Details

Refresh Rate :60Hz
Reverse Scan :Yes (U/D, L/R)
Power Consumption :1.90W (Typ.)
Driver IC :COG Built-in NT39419BH-D/4ID + NT52001H-D/4IC
Time Controller (T-CON) :Embedded T-CON


Chimei Innolux  AT080TN64  Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 6/8-bit)Logic Voltage0≤0.1DVDD≤0.3DVDD; 0.7DVDD≤0.9DVDD≤DVDD
Signal Electrical :Voltage Input3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)Current Input4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL)
Consumption226mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm50pins1 pcsDRGB-50P1C8B-115A


Chimei Innolux  AT080TN64 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity3S12PPositionEdge light type
Exchange
-		Lamp ShapeArrayLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply9.3±0.9VCurrent Supply240±24mA
Consumption2.232W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


Chimei Innolux  AT080TN64  Carton Details

Package Box :AmountWeightSize (L*W*H)
30pcs / box10.26±0.51 Kgs535*370*265 mm




Post A Message

Your email address will not be published. Required fields are marked *

Name*
Your E-Mail*
Message*

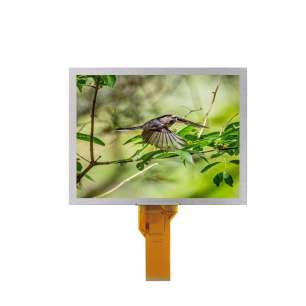

First Page EJ080NA-05B Innolux 8.0 inch 50pin RGB TFT LCD display Panel 800x600 LCD Module
