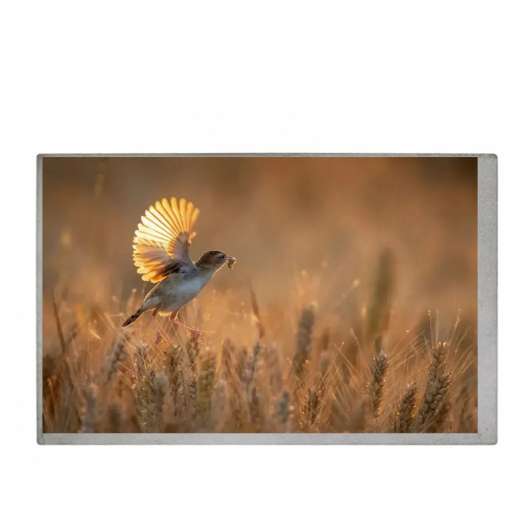

Industrial Innolux 7 inch TFT LCD Panel Display G070Y2-L01 with 800x480, 500 nit

Chimei Innolux G070Y2-L01 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG070Y2-L01Panel Typea-Si

Model	G070Y2-L01
Brand	INNOLUX
Size	7.0inch
Resolution	800*480
Brightness	500cd/m2
Perspective	70/70/60/60 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	Discontinued

Click For Price

Chimei Innolux G070Y2-L01 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G070Y2-L01
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	7.0”	Designed For	Industrial，Autimotive Display
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-40 ~ 95 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	3.0G (29.4 m/s²)
Features :	Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,U/D,L/R Reverse,Matte,6/8bit

Chimei Innolux G070Y2-L01 Optical Details

Basic Information :	Luminance	500 cd/m²(Typ.)	Contrast Ratio	600 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	5/11 (Typ.)(Tr/Td) ms
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.313; Y:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	74%	sRGB	97% coverage
	Adobe RGB	75% coverage	DCI-P3	77% coverage
	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G070Y2-L01 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480, WVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.06350.1905 mm (HV)	Pixel Pitch (W*H)	0.19050.1905 mm (HV) [133PPI]
Physical Size :	Active Viewing(mm)	152.491.44 mm (HV)	Bezel Area (mm)	154.693.64 mm (HV)
Physical Size :	Outline Dim.(mm)	165104 mm (HV)	Depth(mm)	9.53±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	15:9 (W:H)	Orientation	Landscape type
Fixation :	Without
Other Spec :	Weight	147/162g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Chimei Innolux G070Y2-L01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	3.71W (Typ.)

Chimei Innolux G070Y2-L01 Interface Details

Signal Electrical :	Voltage Input		3.3V (Typ.)		Current Input		170/204mA (Typ./Max.)
	Consumption		0.56W (Typ.)		Signal Interface		LVDS (1 ch, 6/8-bit)
Logic Voltage :	-
Interface Features :	Position		-		Physical Type		Connector
Interface Detail :	Brand	Model		Pin Pitch		Pins	Amount	Pin Assignment
	STARCONN	076B20-0048RA-G4		1.25mm		20pins	1 pcs	LVDS-20P1C8B-160A

Chimei Innolux G070Y2-L01 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

Array

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Amount

Pin Assignment

UNE

LM123S004HTF13

1.25 mm

4 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Voltage Input

12.0±1.2V

Current Input

0.25A (Typ.)

Consumption

3.15W (Typ.)

Chimei Innolux G070Y2-L01 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	34 pcs / box	-	465362314 mm
