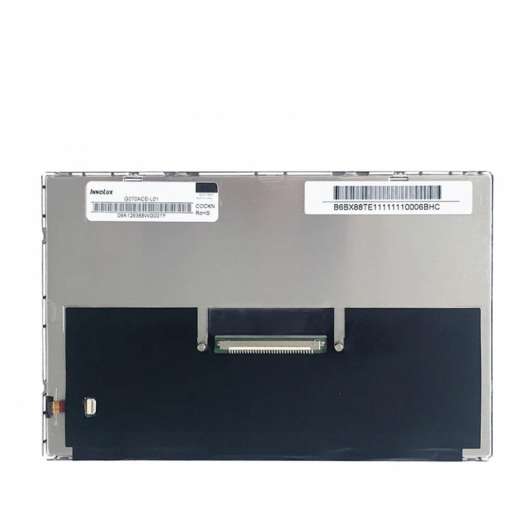

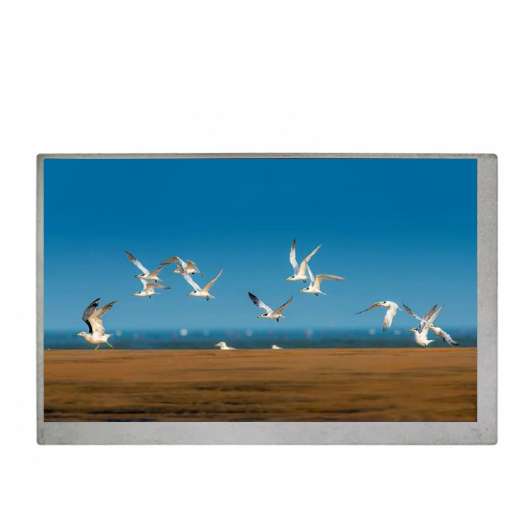

Industrial Innolux 7 inch IPS TFT-LCD screen display G070ACE-L01 with 800x480

Chimei Innolux G070ACE-L01 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG070ACE-L01Panel Typea-S

Model	G070ACE-L01
Brand	INNOLUX
Size	7.0inch
Resolution	800*480
Brightness	500cd/m2
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

Chimei Innolux G070ACE-L01 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G070ACE-L01
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	7.0”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-40 ~ 90 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,Matte,6/8bit

Chimei Innolux G070ACE-L01 Optical Details

Basic Information :	Luminance	500 cd/m² (Typ.)	Contrast Ratio	800 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	13/12 (Typ.)(Tr/Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)((CR≥10)	Operating Mode	AAS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.315	Display Colors	262K/16.7M (6-bit / 8-bit)
Color Performance :	Color Temperature	6611K	White Variation	1.43 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	75%	sRGB	97% coverage
	Adobe RGB	74% coverage	DCI-P3	77% coverage
	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G070ACE-L01 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480, WVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.06350.1905 mm (HV)	Pixel Pitch (W*H)	0.19050.1905 mm (HV) [133PPI]
Physical Size :	Active Viewing(mm)	152.491.44 mm (HV)	Bezel Area (mm)	154.493.44 mm (HV)
Physical Size :	Outline Dim.(mm)	170110 mm (HV)	Depth(mm)	6.0/8.85 (Typ./Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	15:9 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	183±9g	Surface	Antiglare, Hard coating (3H)

Chimei Innolux G070ACE-L01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Time Controller (T-CON) :	2.48W (Typ.)

Chimei Innolux G070ACE-L01 Interface Details

Signal Electrical :	Voltage Input		3.3V (Typ.)		Current Input		135/200mA (Typ./Ma.)
	Consumption		0.48/0.73W (Typ./Max.)		Signal Interface		LVDS (1 ch, 6/8-bit)
Logic Voltage :	-
Interface Features :	Position		-		Physical Type		Connector
Interface Detail :	Brand	Model		Pin Pitch		Pins	Amount	Pin Assignment
	STARCONN	093G30-B0001A-G4		1.0mm		30pins	1 pcs

Chimei Innolux G070ACE-L01 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity			Position		Edge light type
	Exchange	-		Lamp Shape			Lamp Life		50K(Min.) (Hours)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Input		12/18V (Typ./Max.)		Current Input			0.1/0.17A (Min./Typ.)
	Consumption		2.0/2.3W (Typ./Max.)

Chimei Innolux G070ACE-L01 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	38 pcs / box	8.30 Kgs	455370275 mm
