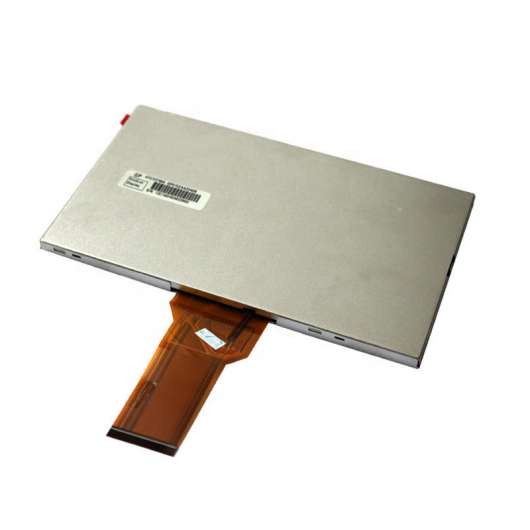

AT070TN94 7 inch Tft Lcd Panel Screen 800*480 Wled 400nits Innolux Display

Innolux 7 0inch AT070TN94 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameAT070TN94Panel Typea-Si

Model	AT070TN94
Brand	INNOLUX
Size	7.0inch
Resolution	800*480
Brightness	400cd/m2
Perspective	70/70/50/70 (Typ.)
Interface	RGB
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

Innolux 7.0inch AT070TN94 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	AT070TN94
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	7.0”	Designed For	Automotive Display，Portable DVD Player
Maximum Ratings :	OP Temperature	-30 ~ 85°C	ST Temperature	-30 ~ 85°C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，WLED Backlight，U/D.L/R Reverse，6/8bit，Matte

Innolux 7.0inch AT070TN94 Optical Details

Basic Information :	Luminance	400 cd/m²(Typ.)	Contrast Ratio	500 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	25 (Typ.)(Tr+Tf) ms
	Viewing Angle	75/75/70/75(Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.310; Y:0.330	Display Colors	262K/16.7M (6-bit / 6-bit + Dithering)
Color Performance :	Color Temperature	6638K	White Variation	1.33/1.43 (Typ./Max.)(9 points)

Innolux 7.0inch AT070TN94 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480, WVGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (mm)	0.0642*0.1790 mm	Pixel Pitch (W*H) (mm)	0.1926*0.1790 mm [134PPI]
Physical Size :	Active Viewing(mm)	154.08(W)*85.92(H) mm	Bezel Area (mm)	156.7(W)*89.1(H) mm
Physical Size :	Outline Dim.(mm)	164.9(W)*100(H) mm	Depth(mm)	5.7±0.3 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Holes & Brackets :	Without
Other Spec :	Weight	154g (Typ.)	Surface	Antiglare

Innolux 7.0inch AT070TN94 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	1.90W (Typ.)
Driver IC :	COG NT39419, TN52001
Time Controller (T-CON) :	Embedded T-CON

Innolux 7.0inch AT070TN94 Interface Details

Signal Electrical :	Signal Interface		LVDS (1 ch, 6/8-bit)		Logic Voltage		0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Signal Electrical :	Voltage Input		3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)		Current Input		4.0/20.0/0.2/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
	Consumption		226mW (Typ.)
Interface Features :	Position		-		Physical Type		FPC
Interface Detail :	Brand	Model		Pin Pitch		Pins	Amount	Pin Assignment
				0.5mm		50pins	1 pcs	DRGB-50P1C8B-115A

Innolux 7.0inch AT070TN94 Backlight Details

Lamp Features :	Lamp Type	WLED		Quantity		3S9P	Position	Edge light type
	Exchange	-		Lamp Shape		Array	Lamp Life	20K(Min.) (Hours)
Lamp Electrical :	Voltage Supply		9.3±0.9V		Current Supply				170/180/200mA (Min./Typ./Max.)
	Consumption	1.674W (Typ.)
Interface Features :	Position	-		Physical Type		Included in panel signal interface
Backlight Driver :	No

Innolux 7.0inch AT070TN94 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	50pcs / box	10.68±0.53 Kgs	530355255 mm
