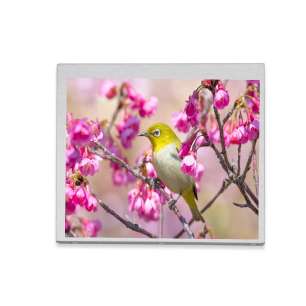

Original 5.7 Inch 640x480 Innolux TFT LCD Panel Industrial LCD G057VGE-T1

Original 5 7 Inch 640x480 Innolux TFT LCD Panel Industrial LCD Display G057VGE-T01 with TTL Interface

Model	G057VGE-T01
Brand	CHIMEI
Size	5.7inch
Resolution	640×480
Brightness	450cd/m²
Perspective	80/80/70/70
Interface	TTL
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

Chimei Innolux G057VGE-T01 Optical Details

Basic Information :	Luminance	450 cd/m²(Typ.)	Contrast Ratio	800 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	15/35 (Typ.)(Tr/Td) ms
	Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	54%	sRGB	75% coverage
	Adobe RGB	57% coverage	DCI-P3	56% coverage
	Rec.2020	40% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G057VGE-T01 Mechanical Details

Pixel Features :	Number of Pixel	640(RGB)*480, VGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.060*0.180 mm	Pixel Pitch (W×H)	0.180*0.180 mm [141PPI]
Physical Size :	Active Viewing(mm)	115.2(W)*86.4(H) mm	Bezel Area (mm)	118.2(W)*89.4(H) mm
Physical Size :	Outline Dim.(mm)	144(W)*104.6(H) mm	Depth(mm)	12.3±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-Φ2.6), Rear mounting holes (4-Φ2.6)
Other Spec :	Weight	155/170g (Typ./Max.)	Surface	Antiglare (Haze 25%)

Chimei Innolux G057VGE-T01 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	3.5W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

Chimei Innolux G057VGE-T01 Interface Details

Signal Electrical :	Voltage Input		3.3V (Typ.)		Current Input		140/190mA (Typ./Max.)
	Consumption		0.53W (Typ.)		Signal Interface		TTL (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position		-		Physical Type		Connector
Interface Detail :	Brand	Model		Pin Pitch		Pins	Amount	Pin Assignment
	HRS	FH12-33S-0.5SH(55)		0.5mm		33pins	1 pcs	DRGB-33P1C6B-020A

Chimei Innolux G057VGE-T01 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pitch

Pins

Amount

Pin Assignment

JST

SM06B-SRKS-G-TB(HF)

1.0 mm

6 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Voltage

12.0±1.2V

Input Current

0.26±0.03A

Consumption

2.45W (Typ.)

Chimei Innolux G057VGE-T01 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	60 pcs / box	11.65 Kgs	500400330 mm

Chimei Innolux G057VGE-T01 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G057VGE-T01
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	5.7”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,U/D,L/R Reverse,Matte
