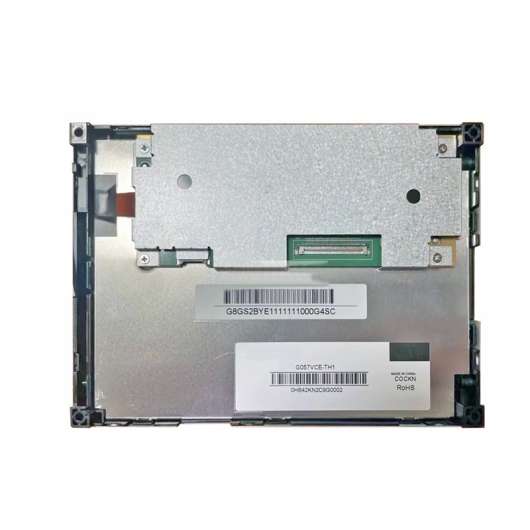

Innolux 5.7" G057VGE-T01 lcd display screen panel G057VCE-TH1

Innolux 5 7 " G057VGE-T01 lcd display screen panel G057VCE-TH1

Model	G057VCE-TH1
Brand	Innolux
Size	5.7inch
Resolution	640×480
Brightness	450 cd/m² (Typ.)
Perspective	88/88/88/88 (Typ.)
Interface	RGB
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

AUO G057VCE-TH1 Mechanical Details

Pixel Features :	Pixel Format	640(RGB)*480, VGA	Dot Pitch(mm)	0.0600.180 (HV)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch (mm)	0.1800.180 (HV) [141PPI]
Mechanical Size :	Active Viewing	115.2(H) *86.4(V)mm	Bezel Area(mm)	118.2(H) *89.4(V)
Mechanical Size :	Outline Dim.(mm)	144(H) *104.6(V)	Depth(mm)	12.3±0.5
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Fixation :	Side mounting holes (4-Φ2.6), Rear mounting holes (4-Φ2.6)
Other Detail :	Mass	TBD	Surface	Antiglare, Hard coating (3H)

AUO G057VCE-TH1 Optical Details

Brightness	Brightness	450 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	88/88/88/88(Typ.)(CR≥10)	Optical Mode	AMVA, Normally Black, Transmissivee
	Viewing Direction	Symmetry	Response Time	13/12 (Typ.)(Tr/Td)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K (6-bit)
Color Performance :	Color Temperature	6485K	Uniformity	1.255/1.39 (Typ./Max.)(5 points)
1931 Color Gamut :	NTSC Ratio	71%	sRGB	94% coverage
	Adobe RGB	72% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G057VCE-TH1 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Time Controller (T-CON) :	Embedded T-CON

AUO G057VCE-TH1 Backlight Details

Back-light Features :

Lamp Type

WLED

Amount

Life Time

50K(Min.) (Hours)

Replacement

Lamp Shape

Position

Edge light type

Interface Features :

Position

Physical Type

Connector

Interface Detail

Brand

Model

Amount

Pin Pitch

Pin Amount

Pin Assignment

CviLux

CI4205M2HRP-NH

1 pcs

1.25 mm

5pins

Backlight Driver :

With LED Driver

Backlight Driver :

Input Current

0.19±0.3A

Input Voltage

12.0±1.2V

Consumption

2.3W (Typ.)

AUO G057VCE-TH1 Interface Details

Signal Electrical :	Input Current		145/175mA (Typ./Max.)		Input Voltage		3.3V (Typ.)
	Consumption		0.88/1.06W (Typ./Max.)		Signal Interface		Parallel RGB (1 ch, 6-bit)
Logic Voltage	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Interface :	Brand	Model		Amount	Pin Pitch	Pin Amount		Pin Assignment
	I-PEX	20455-040E-76		1 pcs	0.5mm	40pins

Innolux G057VCE-TH1 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	60 pcs / box	11.65 Kgs	500400330 mm (LWH)

AUO G057VCE-TH1 Application Details

Basic Info :	Panel Brand	AUO	Panel Model	G057VCE-TH1
	Diagonal Size	5.7inch	Application	Industrial
	Panel Type	a-Si TFT-LCD , LCM
Reliability :	Operating Temp.	-30 ~ 85 °C	Storage Temp.	-40 ~ 85 °C
Reliability :	RoHS State	RoHS	Vibration Level	1.5G (14.7 m/s²)
Specific Features :	Wide Temperature，WLED Backlight，Life>=50 hours,With LED Driver,U/D,L/R Reverse,Matte
