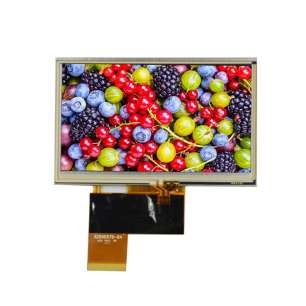

CHIMEI Innolux AT043TN25 V.2 4.3" 480x272 WQVGA TFT LCD Module RGB LCD Screen 40 Pin

AT043TN25 V 2
AT043TN25 V.2
AT043TN25 V.2
  • AT043TN25 V 2
  • AT043TN25 V.2
  • AT043TN25 V.2

CHIMEI Innolux AT043TN25 V.2 4.3" 480x272 WQVGA TFT LCD Module RGB LCD Screen 40 Pin

CHIMEI Innolux AT043TN25 V 2 4 3 " 480x272 WQVGA TFT LCD Module RGB LCD Screen 40 Pin

Model AT043TN25 V.2
Brand INNOLUX
Size 4.3inch
Resolution 480*272
Brightness 500cd/m2
Perspective 70/70/50/70 (Typ.)
Interface RGB
Operating Temp -20 ~ 70 °C
Production State In Production
Click For Price

Innolux AT043TN25 V.2 Application Details

Basic Detail :Panel Brand INNOLUX/CHI MEIModel NameAT043TN25 V.2
Panel Typea-Si TFT-LCD , LCMAnother Name
Panel Size4.3”Designed ForPortable Navigation，Automotive Display
Maximum Ratings :OP Temperature-20 ~ 70 °CST Temperature-30 ~ 80 °C
RoHSRoHSVibration Level-
Features :WLED Backlight，Matte


Innolux AT043TN25 V.2 Optical Details

Basic Information :Luminance500 cd/m² (Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
Good View at6 o'clockResponse Speed10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
Color Performance :ChromaticityX:0.310; Y:0.330Display Colors16.7M (8-bit)
Color Temperature6638KWhite Variation1.33/1.43 (Typ./Max.)(9 points)


Innolux AT043TN25 V.2 Mechanical Details

Pixel Features :Number of Pixel480(RGB)*272 [WQVGA]ArrangementRGB Vertical Stripe
Dot Pitch 0.066*0.198 mm (H*V)Pixel Pitch (W*H)0.198*0.198 mm (H*V)  [128PPI]
Physical Size :Active Viewing(mm)95.04*53.856 mm (H*V)Bezel Area (mm)98.7*57.5 mm (H*V)
Outline Dim.(mm)105.5*67.2 mm (H*V)Depth(mm)2.9±0.2 mm
Outline Features :Form StyleFlat RectangleOutline Shape
Aspect Ratio16:9 (H:V)OrientationLandscape type
Other Spec :Weight45.0g (Typ.)TreatmentAntiglare


Innolux AT043TN25 V.2 Electronics Details

Refresh Rate :60Hz
Reverse Scan :No


Innolux AT043TN25 V.2 Interface Details

Signal Electrical :Signal InterfaceParallel RGB (1 ch, 8-bit)Logic VoltageGND≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Signal Electrical :Voltage Input3.3V (Typ.)Current Input17/25mA (Typ./Max.)
Consumption56mW (Typ.)
Interface Features :Position-Physical TypeFPC
Interface Detail :BrandModelPin PitchPinsAmountPin Assignment


0.5mm40 pins1 pcsDRGB-40P1C8B-085A


Innolux AT043TN25 V.2 Backlight Details

Lamp Features :Lamp TypeWLEDQuantity8S1PPositionEdge light type
Exchange
-		Lamp Shape1 stringLamp Life20K(Min.) (Hours)
Lamp Electrical :Voltage Supply25.2/27.9/31.5V (Min./Typ./Max.)Current Supply18/20/22mA (Min./Typ./Max.)
Consumption0.51W (Typ.)
Interface Features :Position-Physical TypeIncluded in panel signal interface
Backlight Driver :No


Innolux AT043TN25 V.2 Carton Details

Package Box :AmountWeightSize (L*W*H)
80pcs / box7.10±0.36 Kgs375*280*210 mm
