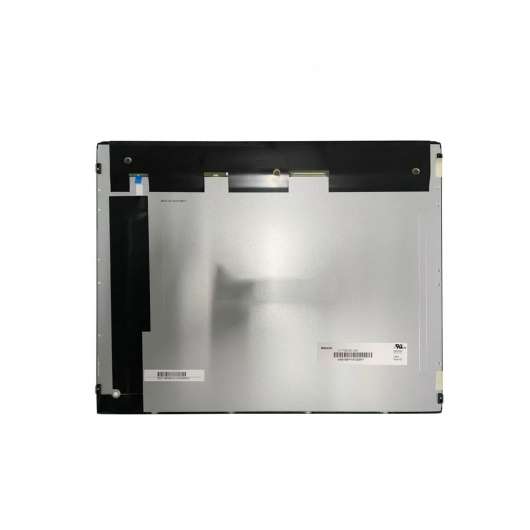

1、Innolux G170EGE-L50 Application DetailsBasic Detail :ManufacturerInnoluxModel NameG170EGE-L50Panel Typea-Si TFT-LCD ,
| Model | G170EGE-L50 |
| Brand | Chimei Innolux |
| Size | 17.0inch |
| Resolution | 1280*1024 |
| Brightness | 400cd/m2 |
| Perspective | 85/85/80/80 (Typ.) |
| Interface | LVDS |
| Operating Temp | -30 ~ 80 °C |
| Production State | Discontinued |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Innolux G170EGE-L50 Application Details
Basic Detail :
Manufacturer
Innolux
Model Name
G170EGE-L50
Panel Type
a-Si TFT-LCD , LCM
Another Name
Panel Size
17.0 inch
Designed For
Industrial
Maximum Ratings :
OP Temperature
-30 ~ 80 °C
ST Temperature
-40 ~ 85 °C
RoHS
RoHS
Vibration Level
1.5G (14.7 m/s²)
Features :
Wide Color Gamut，Wide Temperature，WLED Backlight，With LED Driver，Upside I/F,Matte
2、Innolux G170EGE-L50 Optical Details
Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
-
Response Speed
1/4 (Typ.)(Tr/Td) (ms)
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3、Innolux G170EGE-L50 Mechanical Details
Pixel Features :
Number of Pixel
1280(RGB)×1024 [SXGA]
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.088×0.264 mm (H×V)
Pixel Pitch(W×H)
0.264×0.264 mm (H×V) [96PPI]
Physical Size :
Active Viewing
337.92×270.336 mm (H×V)
Bezel Area
341.9×274.4 mm (H×V)
Outline Dim.
358.5×296.5 mm (H×V)
Outline Depth
10.5/11 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
5:4
Shape Style
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.26/1.40/1.47Kgs (Min./Typ./Max.)
Surface
Antiglare (Haze 25%), Hard coating (3H)
4、Innolux G170EGE-L50 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
No
Total Consumption :
TBD
5、Innolux G170EGE-L50 Interface Detail
Signal Electrical :
Input Current
490/580mA (Typ./Max.)
Input Voltage
5.0V (Typ.)
Consumption
2.45/2.9W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position
Upper right of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
FOXCONN
GS23301-0321R-7H
1.0mm
30 pins
1 pcs
LVDS-30P2C8B-160A
6、Innolux G170EGE-L50 Lightting Details
Lamp Features :
Lamp Type
-
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
WLED
Lamp Life
40K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Lamp Electrical :
Voltage Input
34.2/36/37.8V (Min./Typ./Max.)
Current Input
40±2.4mA
Consumption
5.76/6.05W (Typ./Max.)
Backlight Driver :
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM10B-SHLS-TF
1.0 mm
10pins
1 pcs
Driver Electrical :
Voltage Input
12.0V (Typ.)
Current Input
-
7、 Innolux G170EGE-L50 Packing Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
11
440×280×375
17.45
