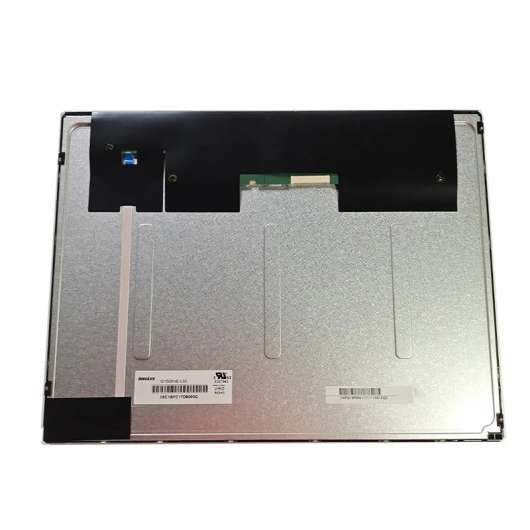

Chimei Innolux 15.0 inch G150XNE-L03 LVDS 1024*768 full viewing angle LCD Panel

Chimei Innolux G150XNE-L03 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG150XNE-L03Panel Typea-S

Model	G150XNE-L03
Brand	Chimei Innolux
Size	15inch
Resolution	1024*768
Brightness	300cd/m2
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

Chimei Innolux G150XNE-L03 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G150XNE-L03
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial，Game
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	WLED Backlight，Life>=70K hours,With LED Driver，Upside I/F,180°;Reverse，6/8bit，Matte

Chimei Innolux G150XNE-L03 Optical Details

Basic Information :	Luminance	300 cd/m²(Typ.)	Contrast Ratio	2000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	13/5 (Typ.)(Tr/Td) ms
	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Operating Mode	NPVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	92% coverage
	Adobe RGB	71% coverage	DCI-P3	74% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G150XNE-L03 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0990.297 mm (HV)	Pixel Pitch	0.2970.297 mm (HV) [85PPI]
Physical Size :	Active Viewing(mm)	304.128228.096 mm (HV)	Bezel Area	307.4231.3 mm (HV)
Physical Size :	Outline Dim.	326.5253.5 mm (HV)	Depth(mm)	9.1±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	0.96/1.00Kgs (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Chimei Innolux G150XNE-L03 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	7.4W (Typ.)

Chimei Innolux G150XNE-L03 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		800/960mA (Typ./Max.)
	Consumption			-
Interface Features :	Position			Rear			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
			CID520D1HR0-NH		1.25mm			20pins	1 pcs		LVDS-20P1C8B-060D

Chimei Innolux G150XNE-L03 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

70K(Typ.) (Hours)

Interface Features :

Position

Physical Type

Connector

Backlight Driver :

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

CI4205M2HRP-NH

1.25 mm

5 pins

1 pcs

Driver Electrical :

Input Current

0.29±0.35A

Input Voltage

12.0±1.2V

Consumption

3.5/4.2W (Typ./Max.)

Chimei Innolux G150XNE-L03 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	16pcs / box	18 Kgs	511420360 mm
