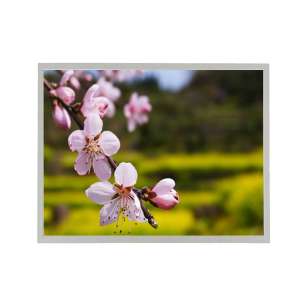

G150XGE-L07 Chimei Innolux Original 15 inch 1024*768 Industrial TFT LCD Screen

Chimei Innolux G150XGE-L07 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG150XGE-L07Panel Typea-S

Model	G150XGE-L07
Brand	Chimei Innolux
Size	15inch
Resolution	1024*768
Brightness	350cd/m²
Perspective	80/80/70/70 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 70 °C
Production State	Discontinued

Click For Price

Chimei Innolux G150XGE-L07 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G150XGE-L07
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	15”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-30 ~ 70 °C	ST Temperature	-40 ~ 70 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，Lamp Repaceable,WLED Backlight，Life>=50K hours,With LED Driver，Upside I/F,180°Reverse，6/8bit，Matte

Chimei Innolux G150XGE-L07 Optical Details

Basic Information :	Luminance	350 cd/m²(Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5/11 (Typ.)(Tr/Td) ms
	Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	61%	sRGB	81% coverage
	Adobe RGB	63% coverage	DCI-P3	63% coverage
	Rec.2020	45% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G150XGE-L07 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.099*0.297 mm	Pixel Pitch (W*H)	0.297*0.297 mm [85PPI]
Physical Size :	Active Viewing(mm)	304.128228.096 mm (HV)	Bezel Area (mm)	307.4231.3 mm (HV)
Physical Size :	Outline Dim.(mm)	326.5253.5 mm (HV)	Depth(mm)	11.56±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.08/1.13Kgs (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Chimei Innolux G150XGE-L07 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	8.1W (Max.)

Chimei Innolux G150XGE-L07 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3V (Typ.)			Current Input		590/690mA (Typ./Max.)
	Consumption			-
Interface Features :	Position			Rear			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	E&T		3804K-F20N-10L		1.25mm			20pins	1 pcs		LVDS-20P1C8B-060D

Chimei Innolux G150XGE-L07 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Backlight Driver :

With LED Driver

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

E&T

3808K-F05N-03L

1.25 mm

5 pins

1 pcs

Driver Electrical :

Input Current

0.45±0.1A

Input Voltage

12.0±1.2V

Consumption

4.9W (Max.)

Chimei Innolux G150XGE-L07 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	15pcs / box	18 Kgs	511420360 mm
