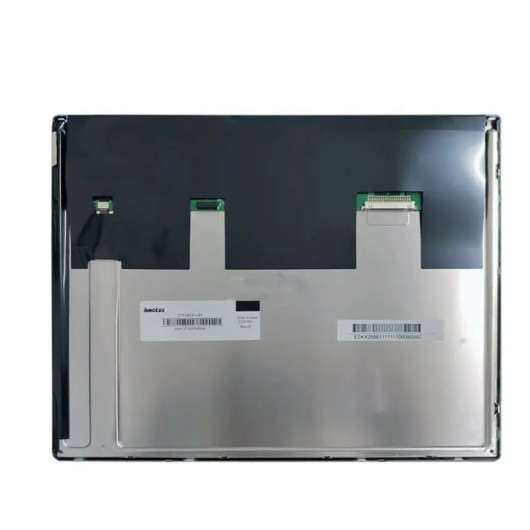

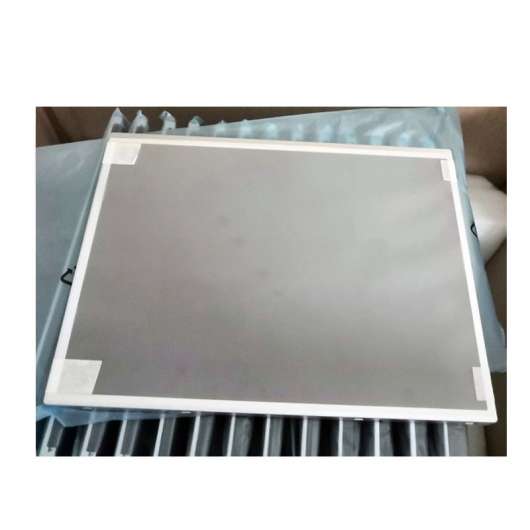

1、Innolux G121XCE-LM1 Application DetailsBasic Info :Panel BrandINNOLUXPanel ModelG121XCE-LM1Diagonal Size12 1 "Applicatio
| Model | G121XCE-LM1 |
| Brand | Chimei Innolux |
| Size | 12.1inch |
| Resolution | 1024*768 |
| Brightness | 1000 cd/m² (Typ.) |
| Perspective | 89/89/89/89 |
| Interface | LVDS |
| Operating Temp | -30 ~ 75 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Innolux G121XCE-LM1 Application Details
Basic Info :
Panel Brand
INNOLUX
Panel Model
G121XCE-LM1
Diagonal Size
12.1"
Application
Industrial
Panel Type
a-Si TFT-LCD , LCM
Reliability :
Operating Temp.
-30 ~ 75 °C
Storage Temp.
-40 ~ 80 °C
RoHS State
RoHS
Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
Wide Temperature，Ultra Hight Brightness，WLED Backlight，Life≥50K hours，With LED Driver，Upside I/F，U/D,L/R Reverse，6/8bit ，Matte
2、Innolux G121XCE-LM1 Mechanical Details
Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.080×0.240 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.240×0.240 mm (H×V) [105PPI]
Mechanical Size :
Display Area
245.76×184.32 mm (H×V)
Outline Dim.
249.0×187.5 mm (H×V)
Outline Dim.
260.5×204 mm (H×V)
Outline Depth
8.4/8.9 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
490/510g (Typ./Max.)
Surface
Antiglare, Hard coating (3H)
3、Innolux G121XCE-LM1 Optical Details
Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AAS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
13/12 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.40 (Typ./Max.)(9 points)
1931 Color Gamut :
NTSC Ratio
73%
sRGB
93% coverage
Adobe RGB
72% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
4、Innolux G121XCE-LM1 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
TBD
5、Innolux G121XCE-LM1 Backlight Details
Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
Replaceable
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
ACES
91208-01001-H01
1.0 mm
10 pins
1 pcs
Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
1.00/1.16A (Typ./Max.)
Consumption
12.0/13.9W (Typ./Max.)
6、Innolux G121XCE-LM1 Interface Detail
Signal Systerm :
LVDS (1 ch, 6/8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
520/620mA (Typ./Max.)
Consumption
1.72/2.05W (Typ./Max.)
Interface Features :
Type
Connector
Position
Upper right of panel
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STARCONN
076B20-0048RA-G4
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-160A
7、Innolux G121XCE-LM1 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
18
465×362×314
10.90
