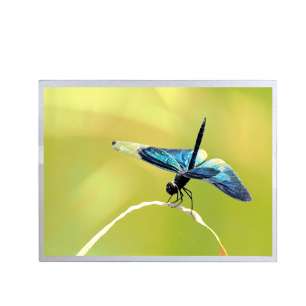

CMI industrial 12.1 inch 1024*768 G121X1-L03 with brightness 600 nits tft lcd

Chimei Innolux G121X1-L03 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG121X1-L03Panel Typea-Si

Model	G121X1-L03
Brand	Chimei Innolux
Size	12.1inch
Resolution	1024*768
Brightness	600cd/m2
Perspective	80/80/70/70 (Typ.)
Interface	LVDS
Operating Temp	-30 ~ 80 °C
Production State	Discontinued

Click For Price

Chimei Innolux G121X1-L03 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G121X1-L03
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	12.1”	Designed For	Industrial，Automotive Display，Gaming
Maximum Ratings :	OP Temperature	-30 ~ 80 °C	ST Temperature	-40 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，Hight Brightness，Lamp Repaceable,WLED Backlight， Life>=50K hours,With LED Driver，Upside I/F,U/D,L/R Reverse，6/8bit，Glossy

Chimei Innolux G121X1-L03 Optical Details

Basic Information :	Luminance	600 cd/m²(Typ.)	Contrast Ratio	700:1 (Typ.) (Transmissive)
	Good View at	-	Response Speed	5/11 (Typ.)(Tr/Td) ms
	Viewing Angle	80/80/70/70 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	63%	sRGB	83% coverage
	Adobe RGB	65% coverage	DCI-P3	65% coverage
	Rec.2020	47% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G121X1-L03 Mechanical Details

Pixel Features :	Number of Pixel	1024(RGB)*768, XGA	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.080*0.240 mm	Pixel Pitch (W*H)	0.240*0.240 mm [105PPI]
Physical Size :	Active Viewing(mm)	245.76(W)*184.32(H) mm	Bezel Area (mm)	249.0(W)*187.5(H) mm
Physical Size :	Outline Dim.(mm)	260.5(W)*204(H) mm	Depth(mm)	8.4±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight	510/540g (Typ./Max.)	Surface	Glare (Haze 0%), Hard coating (3H)

Chimei Innolux G121X1-L03 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	11.8W (Typ.)

Chimei Innolux G121X1-L03 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3/5.0V (Typ.)(VCC)			Current Input		540/400mA (Typ.)(3.3/5.0V)
	Consumption			2.0W (Typ.)
Interface Features :	Position			Rear			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	JAE		FI-SEB20P-HFE		1.25mm			20pins	1 pcs		LVDS-20P1C8B-160A

Chimei Innolux G121X1-L03 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type (Bottom side)

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

ACES

91208-01001-H01

1.0 mm

10 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Current

700/830/900mA (Min./Typ./Max.)

Input Voltage

12.0±5.0V

Consumption

10.0W (Typ.)

Chimei Innolux G121X1-L03 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	16pcs / box	15.0 Kgs	465362314 mm
