Chimei Innolux G121AGE-L03 800x600 INNOLUX 20 pins 12.1 inch TFT LCD Panel

Chimei Innolux G121AGE-L03 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameG121AGE-L03Panel Typea-S

Model	G121AGE-L03
Brand	Chimei Innolux
Size	12.1inch
Resolution	800*600
Brightness	450 cd/m² (Typ.)
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	-30 ~ 85 °C
Production State	Discontinued

Click For Price

Chimei Innolux G121AGE-L03 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	G121AGE-L03
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	12.1”	Designed For	Industrial,Healthcare
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.5G (14.7 m/s²)
Features :	Wide Temperature，Lamp Repaceable, WLED Backlight，Life>=50K hours,With LED Driver, U/D,L/R Reverse,6/8 bit, Matte

Chimei Innolux G121AGE-L03 Optical Details

Basic Information :	Luminance	450 cd/m²(Typ.)	Contrast Ratio	1500:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	13/12 (Typ.)(Tr/Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	Super MVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.2M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.40 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	51%	sRGB	71% coverage
	Adobe RGB	53% coverage	DCI-P3	53% coverage
	Rec.2020	38% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G121AGE-L03 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*600 [SVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.10250.3075 mm (HV)	Pixel Pitch (W*H)	0.30750.3075 mm (HV) [82PPI]
Physical Size :	Active Viewing(mm)	246184.5 mm (HV)	Bezel Area (mm)	249.0187.5 mm (HV)
Physical Size :	Outline Dim.(mm)	260.5204 mm (HV)	Depth(mm)	8.4±0.5 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3(W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Spec :	Weight	506/530g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Chimei Innolux G121AGE-L03 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Total Consumption :	7.9W (Typ.)

Chimei Innolux G121AGE-L03 Interface Details

Signal Systerm :		LVDS (1 ch, 6/8-bit)				Logic Voltage				-
Signal Electrical :	Voltage Input			3.3/5.0V (Typ.)(VCC)			Current Input		450/310mA (Typ.)(3.3V/5.0V)
	Consumption			1.49W (Typ.)(3.3V)
Interface Features :	Position			-			Physical Type		Connector
Interface Detail :	Brand		Model		Pin Pitch			Pins	Amount		Pin Assignment
	JAE		FI-SEB20P-HFE		1.25mm			20pins	1 pcs		LVDS-20P1C8B-150A

Chimei Innolux G121AGE-L03 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Replaceable

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

ACES

91208-01001-H01

1.0 mm

10 pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Voltage

12.0±1.2V

Input Current

0.53A (Typ.)

Consumption

6.4/7.0W (Typ./Max.)

Chimei Innolux G121AGE-L03 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	22pcs / box	19 Kgs	540450275 mm

Your email address will not be published. Required fields are marked *

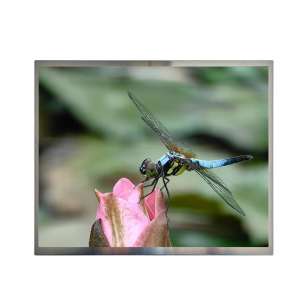

Chimei Innolux G121X1-L04 12.1 inch Original new 1024*768 lcd display screen lcd G121S1-L02 Original A Grade 12.1 inch 800x600 Innolux LCD IPS Panel industrial LCD screen
