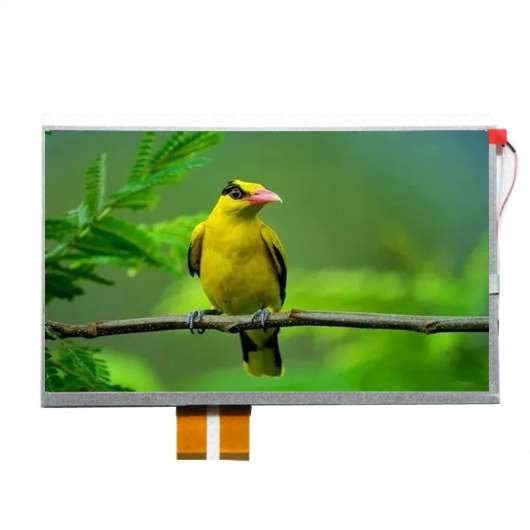

AT102TN03 V.9 INNOLUX 10.2 inch 800x480 Wide Temperture TFT LCD panel display

Chimei Innolux AT102TN03 V 9 Application DetailsBasic Detail :Panel BrandINNOLUX CHI MEIModel NameAT102TN03 V 9Panel T

Model	AT102TN03 V.9
Brand	INNOLUX
Size	10.2inch
Resolution	800*480
Brightness	250cd/m²
Perspective	65/65/45/65 (Typ.)
Interface	TTL
Operating Temp	-30 ~ 85 °C
Production State	In Production

Click For Price

Chimei Innolux AT102TN03 V.9 Application Details

Basic Detail :	Panel Brand	INNOLUX/CHI MEI	Model Name	AT102TN03 V.9
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	10.2”	Designed For	Digital Photo Frame，Portable DVD Player
Maximum Ratings :	OP Temperature	-30 ~ 85 °C	ST Temperature	-30 ~ 85 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	-
Features :	Wide Temperature，WLED Backlight，U/D,L/R Reverse,Matte

Chimei Innolux AT102TN03 V.9 Optical Details

Basic Information :	Luminance	250 cd/m²(Typ.)	Contrast Ratio	300 : 1 (Typ.) (Transmissive)
	Good View at	6 o'clock	Response Speed	15/20 (Typ.)(Tr/Td) ms
	Viewing Angle	65/65/45/65 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	X:0.310; Y:0.330	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6638K	White Variation	1.33/1.43 (Typ./Max.)(9 points)

Chimei Innolux AT102TN03 V.9 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*480 [WVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch (W*H)	0.09250.2760 mm (HV)	Pixel Pitch (W×H)	0.27750.2760 mm (HV) [91PPI]
Physical Size :	Active Viewing(mm)	222132.48 mm (HV)	Bezel Area (mm)	225.3135.7 mm (HV)
Physical Size :	Outline Dim.(mm)	235145.8 mm (HV)	Depth(mm)	5.9±0.3 mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	15:9 (W:H)	Orientation	Landscape type
Fixation :	Side mounting holes (6-M2) on left, right bezel
Other Spec :	Weight	325g (Typ.)	Surface	Antiglare

Chimei Innolux AT102TN03 V.9 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	2.11W (Typ.)
Time Controller (T-CON) :	Need external T-CON

Chimei Innolux AT102TN03 V.9 Interface Details

Signal Electrical :	Signal Interface		TTL (1 ch, 6-bit)		Logic Voltage		0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :	Voltage Input		3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL)		Current Input		4.0/25/0.3/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL)
Interface Features :	Position		-		Physical Type		FPC
Interface Detail :	Brand	Model		Pin Pitch		Pins	Amount	Pin Assignment
				0.5mm		30pins	2 pcs

Chimei Innolux AT102TN03 V.9 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

3S10P

Position

Edge light type (Top side)

Exchange

Lamp Shape

Array

Lamp Life

20K(Min.) (Hours)

Lamp Electrical :

Voltage Supply

8.4/9.3/10.5V (Min./Typ./Max.)

Current Supply

200±20mA

Consumption

1.86W (Typ.)

Interface Features :

Position

Physical Type

Connector

Backlight Driver :

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JST

BHSR-02VS-1

3.5 mm

2 pins

1 pcs

BLE-2PINS-AC

Chimei Innolux AT102TN03 V.9 Carton Details

Package Box :	Amount	Weight	Size (LWH)
Package Box :	25pcs / box	10.79±0.54 Kgs	530355255 mm
