8 48inch 4-wire resistance touch screen AMT9507AMT9507 8 48 inch 4-wire resistance touch screenmodel9507BrandAMTSize
| Part No. | AMT9507 |
| Brand | AMT |
| Thickness Overall | 8.48inch |
| Thickness Overall | 1.4mm |
| Tail Design | FPC / ZIF |
| Outside Area | 188.90 x 141.70mm |
| Active Area | 172.00 x 129.50mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

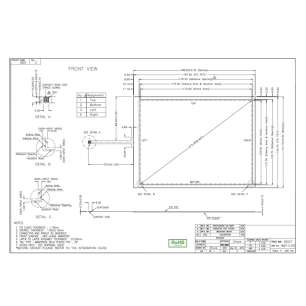

8.48inch 4-wire resistance touch screen AMT9507
AMT9507 8.48 inch 4-wire resistance touch screen
model
9507
Brand
AMT
Size (inches)
8.48inch
OVERALL THICKNESS :
1.40±0.10mm
Tail Design
FPC / ZIF
Outline(mm)
188.90 x 141.70
Active Area(mm)
172.00 x 129.50
ITO GLASS THICKNESS :
1.10mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.50mm
TAIL TYPE
IMMERSION GOLD PLATED FPC，ZIF
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
