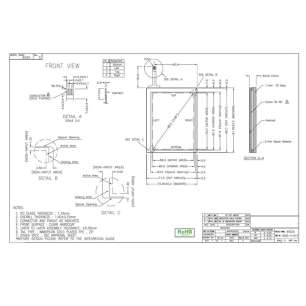

AMT9505 3.85 inch 4-wire resistance touch screen

model

9505

Brand

AMT

Size (inches)

3.85inch

OVERALL THICKNESS :

1.40+0.10mm

Tail Design

FPC / ZIF

Outline(mm)

91.30 x 72.00

Active Area(mm)

79.00 x 58.00

ITO GLASS THICKNESS :

1.10mm

FRONT SUREACE

CLEAR HARDCOAT

LAYER TO LAYER ASSEMBLY TOLERANCE

+0.30mm

TAIL TYPE

IMMERSION GOLD PLATED FPC，ZIF

OTHER SPEC

SEE APPROVAL SHEET

CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
