T190S-5RB045N-ZA18R0-300PH 19 inch five wire resistive touch screen

Model

T190S-5RB045N-ZA18R0-300PH

Size

19.0inch

Type

5-Wire RTP .Touch Window(2-layer)

Input Mode

Stylus or Finger

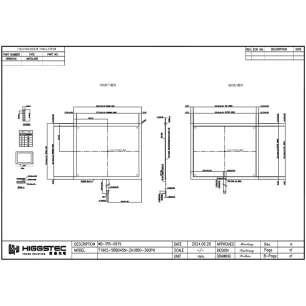

Frame Size

409.27*334.00mm

View Area

377.52*302.26mm

Total Thickness

2.6mm

Operation Temperature

-10°C~+70°C

Storage    Temperature

-40°C~+80°C

Operation Humidity (Non-Condensing)

20%RH~80%RH

Storage Humidity (Non-Condensing)

20%RH~90%RH

Transparency

≥77%

Haze

8%±3%

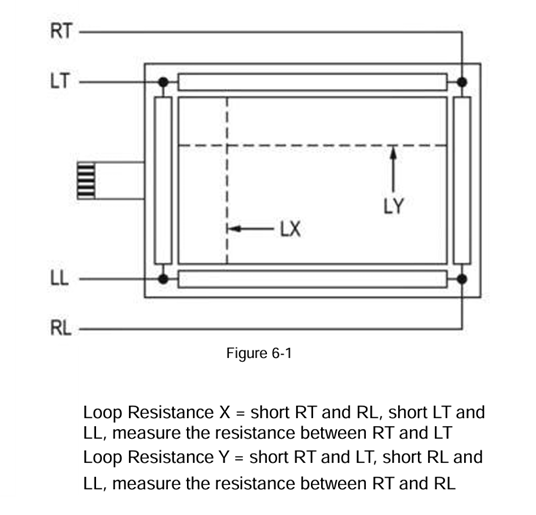

Loop Resistance

X:20~500Ω,Y:20~500Ω(see Figure 6-1)

Linearity

X≤1.5%,Y≤1.5% (See Figure 10-2)

Chattering

≤15ms

Insulation

≥20MQ/25V(DC)

Endurance

No acting damage at DC50V/60sec.

OperatingForce

Stylus= R0.8

≤50g

Impact

25.0ΦDlA. Steel   Ball /67gHeight=50cm

1 time, no damage【lmpact at center area】

Static Load

5000g within 10cm2 area for 30sec

Conforms to Section 07tem-1

Conforms to Section 06ltems-1.2&4

Hardness

3H pencil, pressure 750g/45°

≥3H

Tail Peeling

800g by vertical 90°

Satisfy (1) of ltem 6

Tail Bending

90°10 times up & down

Satisfy(1)of ltem 6

Knock Test

10.000,000 times

a.Conforms to Section 06,ltems-1 & 4

b.Section 06,ltem-2   maintainsX≤2.5%,Y≤2.5%.

c.Operating force remains ≤200g   afterdurability test
