12.12 inch 4-wire resistance touch screen AMT9542

model

9542

Brand

AMT

Size (inches)

12.12inch

OVERALL THICKNESS :

2.10±0.10mm

Tail Design

FPC / AMP-C

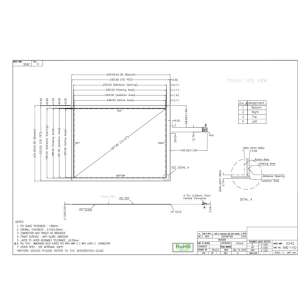

Outline(mm)

266.60 x 204.00

Active Area(mm)

246.00 x 185.00

ITO GLASS THICKNESS :

1.80mm

FRONT SUREACE

ANTI-CLEAR HARDCOAT

LAYER TO LAYER ASSEMBLY TOLERANCE

+0.50mm

TAIL TYPE

IMMERSION GOLD PLATED FPC WITH AMP-C(WITH   LATCH) CONNECTOR

OTHER SPEC

SEE APPROVAL SHEET

CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
