10.1inch 5 Wire Resistive Touch Panel GP-101F-5M-NB03B

model

GP-101F-5M-NB03B

Brand

GTOUCH

01.Characteristics

The   specification is for Five-Wire analog resistive touch panel.

1. It is working well even the surface   suffered scraped damage if the ITO Glass won't been hurt.

2. 500℃ high temperature manufacture   process.

3. Warranty is as longer as 2 years for   normal operating with 10,000,000 touching times.

4. We provide touch panel with high transparency   (more than 80%).It is quite clear even your monitor with low brightness.

5. We could customize various size for   customers' request between 5 to 22 inch.

6. It is easy to install into varied   brands of monitor.

02.Features

Item

Specifications

(1).Type

Five-Wire Analog Resistive Touch Panel

(2).Input Mode

Stylus Pen or Finger

(3).Connector

FFC

03.General   Specification

(1).Frame Size

229.46 x 149.10 mm

(2).View Area

219.56 x 138.20 mm

(3).Active Area

217.56 x 136.20 mm

(4).Total Thickness

2.2mm

(5).Tail Length

85mm

04.Environmental   Characteristics

Item

Temperature

Humidity(Non   Condensing)

(1).Operation

-10°C ~ +60°C

20%RH ~80%RH

(2).Storage

-20°C ~ +70°C

20%RH ~ 90%RH

05.Optical   Characteristics

Item

Specifications

(1).Transparency

≧80% ± 3% (Measured by BYK-Gardner)

(2).Haze

Antiglare Finish≦8% ± 3%

06.Electrical   Characteristics

Item

Specifications

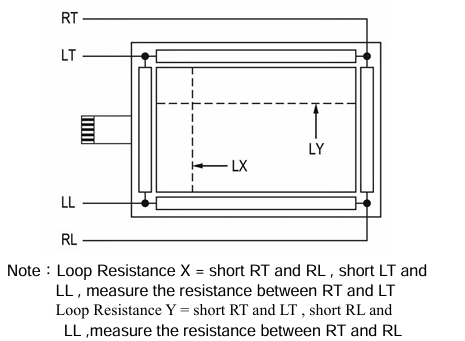

(1).Loop Resistance

X:20~500Ω, Y:20~500Ω

(2).Linearity

X≦1.5%, Y≦1.5%

(3).Chattering

≦15ms

(4).Insulation

≧20MΩ/25V(DC)

(5).Endurance

No acting damage at DC50V/60sec.

07.Mechanical   Characteristics

Item

Specification

Condition

(1).Operating Force

Stylus=R0.8

≦50g

(2).Impact

13.0ψDIA. Steel Ball/9g Height=30cm

1 time, no damage

[Impact at center area]

(3).Static Load

500g within 10 cm² area for 30sec

Satisfy (1) of Item 07 and (1), (2),(4)   of Item 06

(4).Hardness

3H pencil, pressure 750g/45°

≧3H

(5) .Tail Peeling

800g by vertical 90°

Satisfy (1) of Item 06

(6) .Tail Bending

135°10 times left & right

Satisfy (1) of Item 06

08.Reliability

Item

Specification

Condition

(1).Constant Temperature /Humidity

60°C /90%RH, 240hrs and normalized for 4   hrs

After the reliability test, the film may   have the condition of bubble; nevertheless the electric characteristic still   satisfies the following standard. Satisfy (1), (2) of 05; (1), (4) of 06; (2)   of 06 satisfies X≦ 2.5%, Y≦2.5%

(2).Heat Cycle

70°C /240 hrs and normalized for 4 hrs

(3).Cold Cycle

-20°C /240 hrs and normalized for 4 hrs

(4).Thermal Cycle

-20°C ~70 [60 min./cycle] ×50  cycles and normalized for 4 hrs

09.Durability

(1).Knock Test

10,000,000 times

Satisfy (1), (2) of Item 5; (1), (4) of   Item 6; (2) of item 6 satisfies X≦2. 5%, Y≦2.5%
