10 39 inch 4-wire resistance touch screen AMT9541AMT9541 10 39 inch 4-wire resistance touch screenmodel9541BrandAMTS
| Part No. | AMT9541 |
| Brand | AMT |
| Thickness Overall | 10.39inch |
| Thickness Overall | 1.9mm |
| Tail Design | FPC / AMP-C |
| Outside Area | 225.21 x 171.59mm |
| Active Area | 211.07 x 158.50mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More

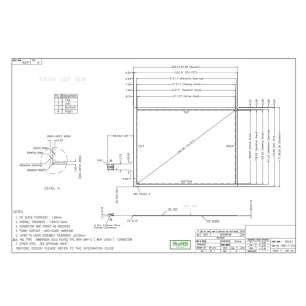

10.39 inch 4-wire resistance touch screen AMT9541
AMT9541 10.39 inch 4-wire resistance touch screen
model
9541
Brand
AMT
Size (inches)
10.39inch
OVERALL THICKNESS :
1.90±0.10mm
Tail Design
FPC / AMP-C
Outline(mm)
225.21 x 171.59
Active Area(mm)
211.07 x 158.50
ITO GLASS THICKNESS :
1.90mm
FRONT SUREACE
ANTI-CLEAR HARDCOAT
LAYER TO LAYER ASSEMBLY TOLERANCE
+0.50mm
TAIL TYPE
IMMERSION GOLD PLATED FPC WITH AMP-C(WITH LATCH)CONNECTOR
OTHER SPEC
SEE APPROVAL SHEET
CONNECTOR AND PINOUT AS INDICATED，*BEFORE DESIGN PLEASE REFER TO THE INTEGRATION GUIDE
