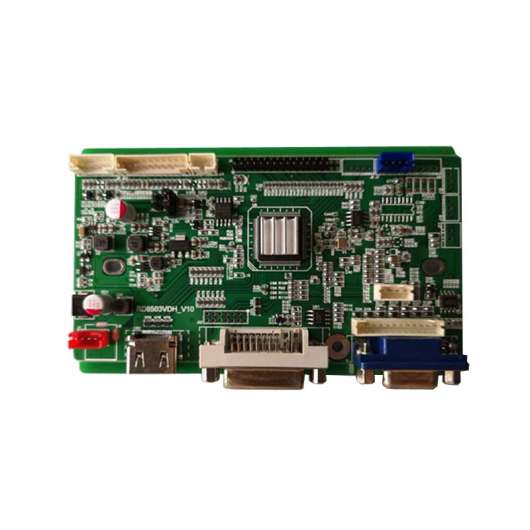

Wide temperature LCD driver board is mainly used to support TFT LCD injection screen Driver board with 1 VGA interface, 1 DVI interface, 1HDMI interface, 1 CVBS interface, supporting LVDS output interface
| Model | RD8503VHD_V10 |
| Maximum resolution | 1920*1080 |
| Support size | ≤82" |
| Interface | VGA, DVI , HDMI, CVBS |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40～+80℃ |
| storage temperature | -45～+85℃ |
| size | 123*65mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Product Overview
This driver motherboard is mainly used to support TFT LCD injection screen. Driver board with 1 VGA interface, 1 DVI interface, 1HDMI interface, 1 CVBS interface, supporting LVDS output interface. The motherboard adopts RDA signal processing chip for processing Powerful functionality, capable of supporting standard and non-standard signals of various specifications. Using high specification components with good working performance.
2、Function
DVI input, supports V1.0 version
HDMI input, supports version 1.4
VGA input, supports up to 1080P
CVBS input, supports NTSC, PAL, SECAM
Support buttons and LED indicator lights
Backlight control, backlight brightness adjustment
Dual LVDS LCD screen interface
Serial communication, ISP upgrade, USB upgrade
3、Product feature description
Input signal
Simulate R, G, B
Support mode
DOS、VGA、SVGA、XGA、SXGA、 UXGA、WXGA、WXGA+、WSXGA+
color
Up to 32BIT
Synchronization range of rows
25KHz-85KHz
Field synchronization range
60-75Hz
DVI and HDMI signals
DVI
1.0
HDMI
1.4
Power Supply
input voltage
10-14v
Working power consumption
<3w
Standby power consumption
<0.5w
Screen voltage
3.3v/5v/12v
Power operation
Working mode, standby mode
other
OSD language
Chinese, English
OSD Function
Automatic adjustment, color adjustment, image adjustment, etc
4、Simulation R, G, B support list
Mode
Resolution
Horizontal frequency (KHz)
Field frequency (Hz)
standard
DOS
640x480
720x400
29.7
29.3
60
70
VESA
VGA
640x480
29.7
37.7
60
75
VESA
SVGA
800x600
37.4
47.1
60
75
VESA
XGA
1024x768
47.8
60.3
60
75
VESA
SXGA
1280x1024
63.7
80.3
60
75
VESA
WXGA
1440x900
55.9
70.6
60
75
VESA
WSXGA+
1680x1050
65.3
82.3
60
75
VESA
UXGA
1920x1080
67.2
84.6
60
75
VESA

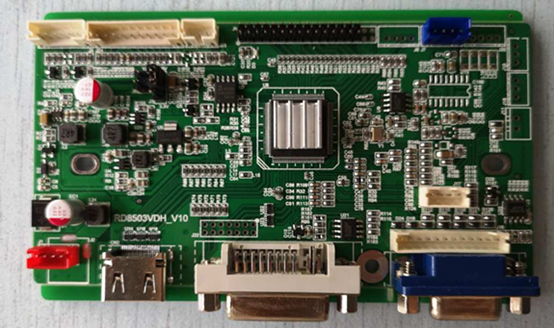

5、Product appearance

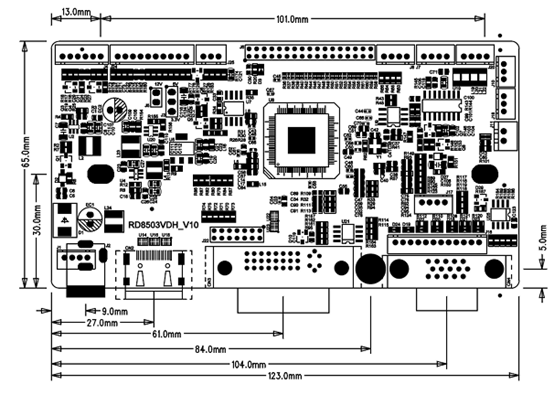

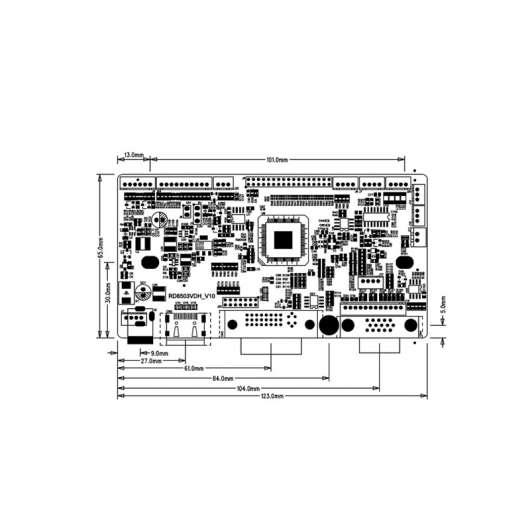

6、Product size
PCB thickness plus maximum part: 15mm
PCB length: 123mm
PCB width: 65mm
PCB screw hole diameter: 3.5mm
7、Precautions for use
Relative humidity: ≤ 80%
Storage temperature: -45~+85 ℃
Operating temperature: -40 to+80 ℃
Please keep the board away from static electricity
Do not be subjected to heavy pressure or bending deformation
Do not connect the power supply until the screen drive cable is properly connected
Do not drop conductive objects onto the board while it is in operation
Do not disassemble the board card
If there is dust on the board, please wipe it with a dry cloth
