XH-2660 VGA, CVBS, HDMI video signal input LCD driver board

1.BRIEF INTRODUCTION

The LCD driver board UT-2660 is suitable for TFT LCD screens with TTL 50PIN standard interface, such as ZJ050NA-08C, AT070TN92, EJ080NA-05B, AT080TN64, AT090TN12 etc.

And it is also suitable for TFT LCD screens with LVDS 40PIN standard interface, such as EJ070NA-01J, EJ080NA-04C, EJ101NA-01G etc.

2.FUNCTION

2.1 VGA、CVBS，HDMI input

2.2 POWER INPUT：DC +12V

2.3 Multifunctional OSD operation

2.4 Remote control function (optional)

2.5 Automatic shutdown without signal

3.SIGNAL INPUT

3.1 CVBS: 1.0Vp-p75Ω

3.2 VGA:  800*480 800*600 1024*600　1024*768 (Refresh rate:60～75)

3.3 HDMI (Common Version 1.2)

4.OPERATING ENVIRONMENT

4.1 Operating Temperature：-10℃～+60℃

4.2 Operating Humidity： 90%RH（No condensation）

5.STORAGE ENVIRONMENT

5.1 Storage Temperature: -20℃～+70℃

5.2 Storage Humidity: 90%RH（No condensation）

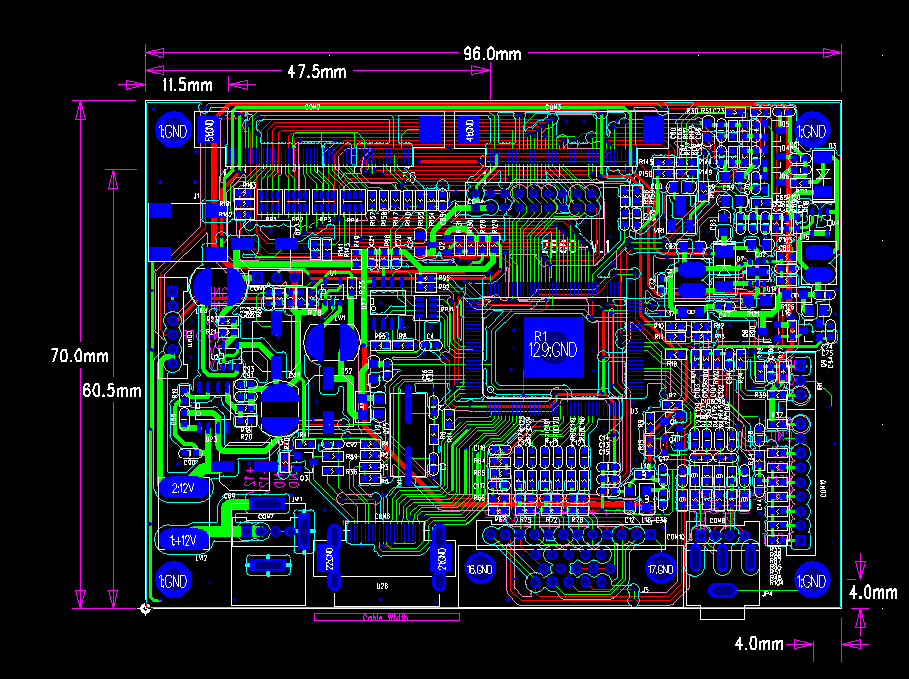

6、Outline Dimension and Physical Pictures (unit: mm)

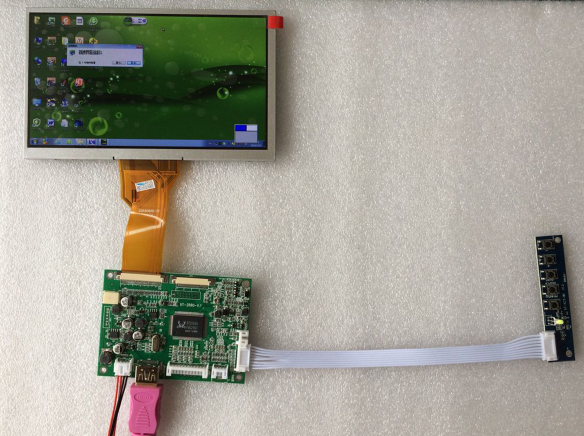

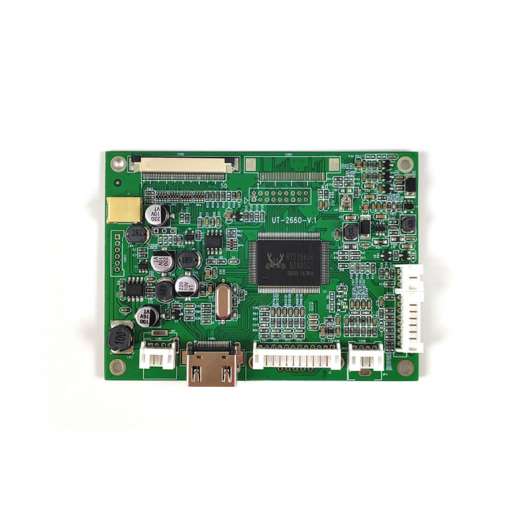

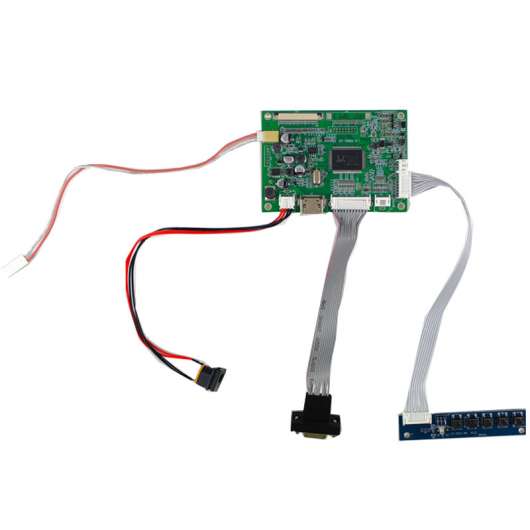

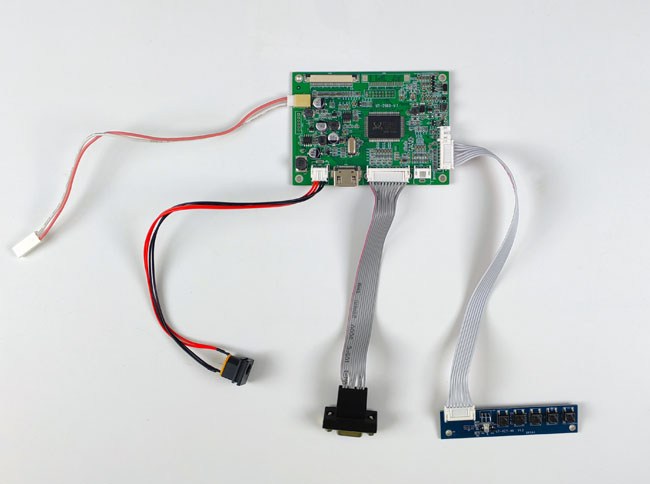

7、UT-2660 Physical photos
