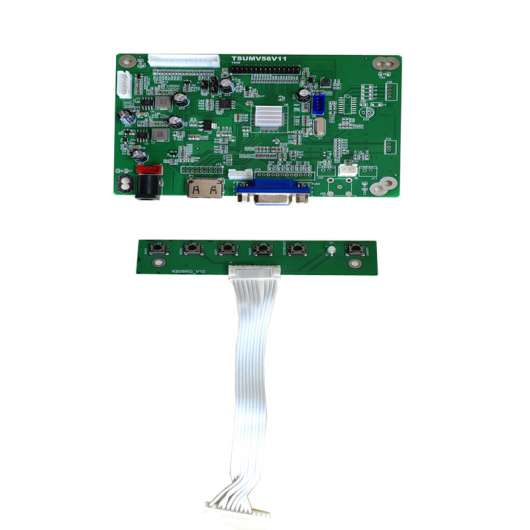

The TFT LCD controller board TSUMV56V11 is mainly used to support TFT LCD screen with double or single LVDS interface, and it can support analog R,G,B, signal, 1x HDMI, 2x CVBS inputs The board has sound processing with 2x3W power amplifier output
| Model | TSUMV56V11 |
| Maximum resolution | 1920*1080 |
| Support size | ≤82" |
| Interface | analog R,G,B, signal, 1x HDMI, 2x CVBS inputs |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -10～+50℃ |
| storage temperature | -10～+50℃ |
| size | 124*85*3.5mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、PODUCT FEATURE
The TFT LCD controller board TSUMV56V11 is mainly used to support TFT LCD screen with double or single LVDS interface, and it can support analog R,G,B, signal, 1x HDMI, 2x CVBS inputs. The board has sound processing with 2x3W power amplifier output. The main chip uses 32-bit RISC high speed and high performance CPU. NTS/PAL/SECAM video signals were comb-filtered and processed by line-by-line scanning. HDMI conforms to the 1.4B standard, and HDCP conforms to the 1.4 standard.
2、FUNCTION
1) Analog R,G,B、2xCVBS，1xHDMI input
2) Power amplifier output 2x3W
3) Remote control function (optional)
3、SIGNALS
Input signal
Analog R,G,B
Modes
DOS,VGA,SVGA,XGA,SXGA,UXGA,WXGA,WXGA+,WSXGA+
Colors
Up to 32bit
HSYNC
25KHz~85KHz
VSYNC
60~75Hz
Composite Video Signal (CVBS)
Input Voltage
0.7Vpp~1.0Vpp
Video format
NTSC M/N, PAL B, G/H, I, D/K, SECAM
HDMI
Support
480p,720p,1080p
HDMI
1.4b
HDCP
1.4
4、Analog R,G,B support modes
Mode
Resolution
Horizontal frequency (KHz)
Field frequency (Hz)
standard
DOS
640x480
720x400
29.7
29.3
60
70
VESA
VGA
640x480
29.7
37.7
60
75
VESA
SVGA
800x600
37.4
47.1
60
75
VESA
XGA
1024x768
47.8
60.3
60
75
VESA
SXGA
1280x1024
63.7
80.3
60
75
VESA
WXGA
1440x900
55.9
70.6
60
75
VESA
WSXGA+
1680x1050
65.3
82.3
60
75
VESA
UXGA
1920x1080
67.2
84.6
60
75
VESA
5、AUDIO POWER AMPLIFIER
Audio power amplifier
Type of power amplifier
Class D
Load Impedance
4Ω
Power consumption
2x3W
Crosstalk
-95db
6、STORAGE ENVIRONMENT
Storage Temperature: -10℃～+50℃
Storage Humidity: ≤80%RH
7、OTHERS
OSD language
Chinese, English
OSD function
Automatic adjustment, color adjustment, image adjustment
8、Transportation, storage, operating requirements
Do not be under heavy pressure to prevent bending and deformation
Anti-static and waterproof
Relative humidity：≤80%
Storage Temperature: -10~50℃
Operating Temperature：-10~50℃

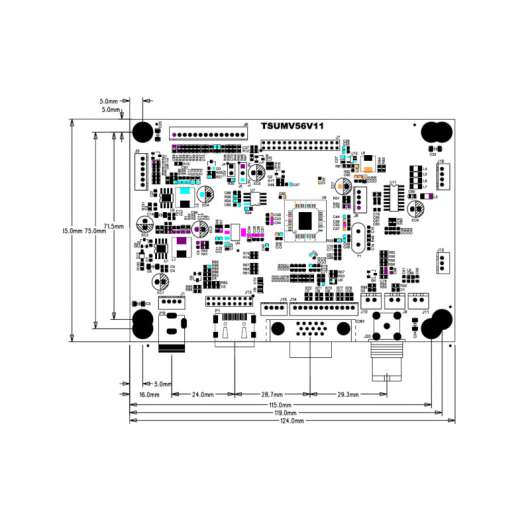

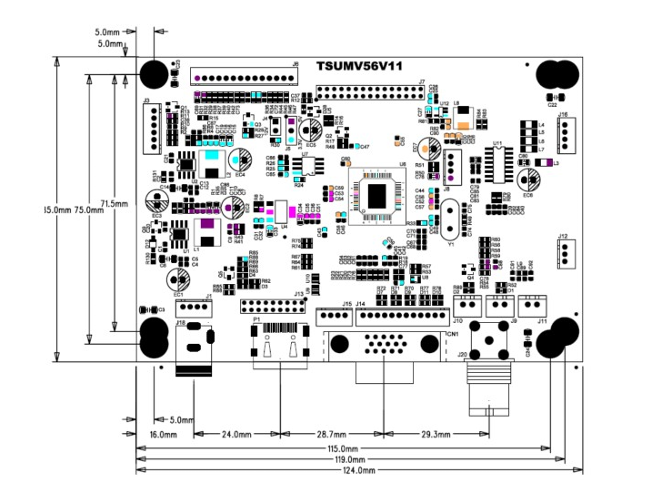

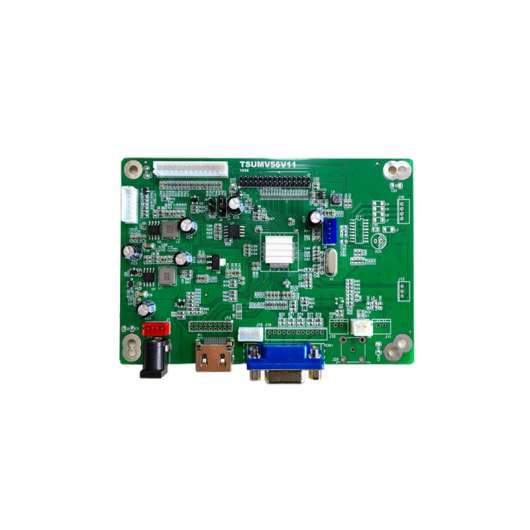

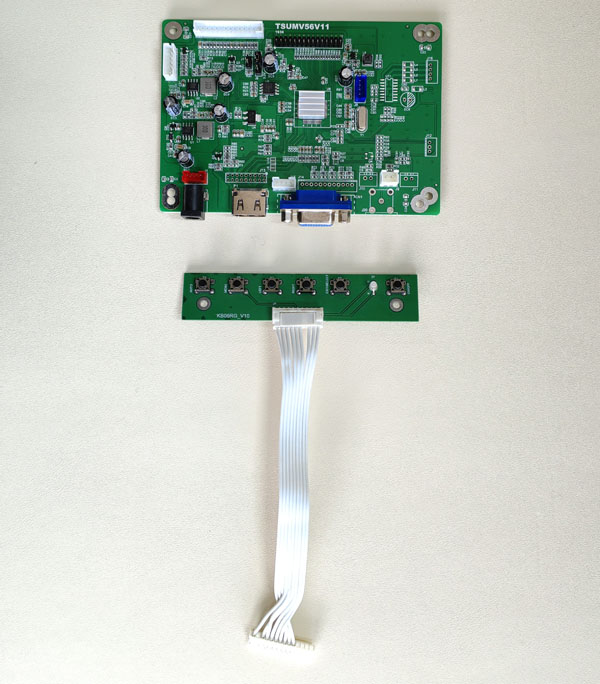

9、APPEARANCE
10、DIMENSION
PCB thickness: 10mm
PCB length: 124mm
PCB width: 85mm
PCB Screw aperture: 3.5mm
