Product Overview This driver board is mainly used to support TFTLCD LCD screens The driver board comes with
| Model | JZ-VD68DG |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA、DVI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40℃～+65℃ |
| storage temperature | -40℃～+65℃ |
| size | 115.0 x 95.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
Product Overview
This driver board is mainly used to support TFTLCD LCD screens. The driver board comes with 1 VGA and 1 DVI, and supports LVDS output interface. The motherboard adopts MTK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification components with good working performance.
*The working temperature range is -40 to 65 ℃.
*Optional addition of automatic photosensitive control.
*Supports a maximum resolution of 1920x1200.
*Can receive remote control function.
*The basic resolution supports up to 85Hz (if the LCD screen used can work at 85Hz).
*Support serial protocol control.
*High level anti-static treatment ensures normal display of images in harsh conditions
2.Product Features
display output
Maximum resolution:
Max：1920x1200
Output interface:
Single/Dual/LVDS
Support signal
Simulate RGB:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
0.7Vp-p@75ohm
Separate/Composite/SOG sync support
Digital DVI:
HorizontalFreq
30—120KHz
VerticalFreq
50—75Hz
Key
Power,Menu,Exit,Plus,Minus
Menu type
Graphic menu
Language support
Supports 16 languages including Chinese and English
Functional operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/ColorTemp.
PC
Clock
Phase
Hposition
Vposition
Autoconfigure
Power Supply
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

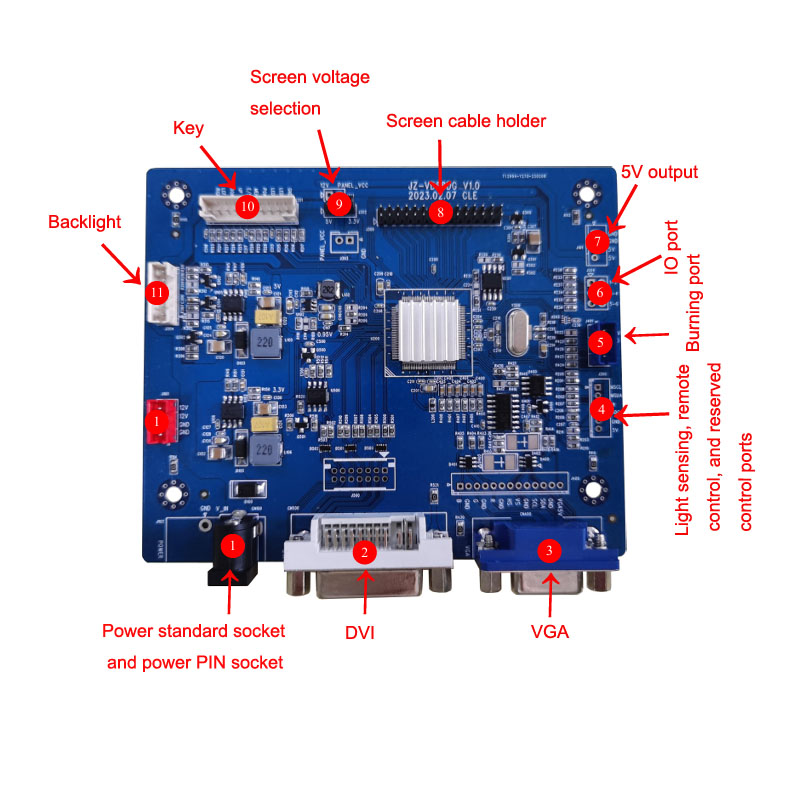

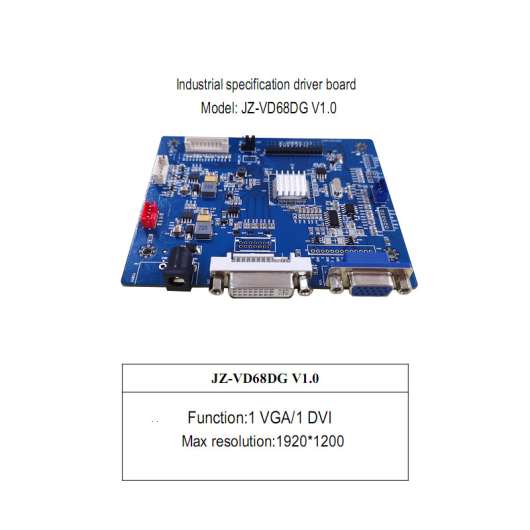

3.Product images

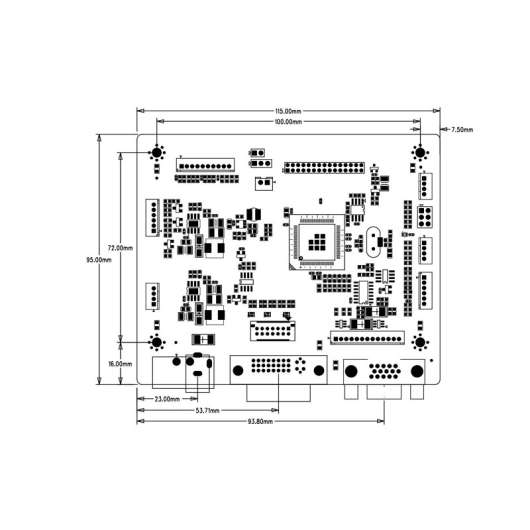

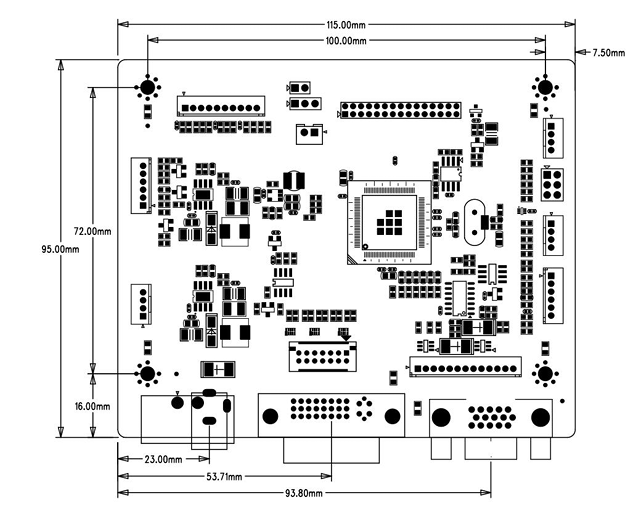

4.Size Description
PCB board thickness: 1.60 mm
Total height: 15.0 mm
Size: 115.0 x 95.0 mm
