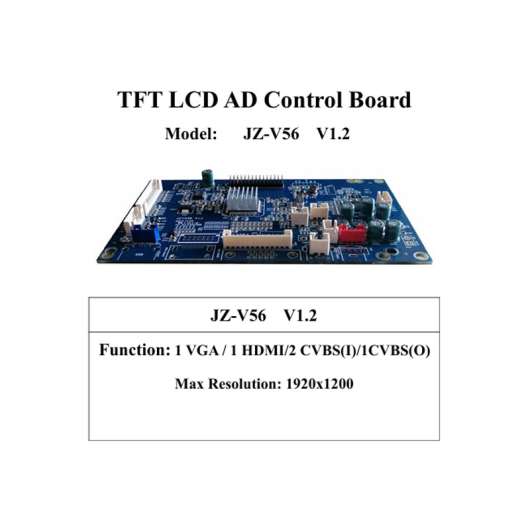

INTRODUCTION The driver board is mainly used to support TFT LCD, with 1-way VGA, 2-channel CVBS input, 1-chan
| Model | JZ-V56 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA,CVBS,CVBS,USB,YPbPr HDMI / DVI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+60℃ |
| storage temperature | -20℃～+60℃ |
| size | 132.13 x 82.13mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
INTRODUCTION
The driver board is mainly used to support TFT LCD, with 1-way VGA, 2-channel CVBS input, 1-channel CVBS output, 1-channel USB, 1-channel YPbPr and 1-channel HDMI / DVI interface, supporting LVDS (6-bit, 8-bit) output. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
* Operating temperature range- 20 to 60 ° C
* Support the maximum resolution to 1920x1200
* Can receive remote control function
* High level anti-static processing ensures the normal display of images in bad conditions
2. PRODUCTCHARACTERISTICS
* 2channels of CVBS signal input, 1 channel of CVBS output, 1 channel of VGA, 1 channel of HDMI / DVI, 1 channel of YPbPr and 1 channel of USB
* Systemsupport: NTSC m, NTSC-J, NTSC 4.43, pal (B, D, G, h, m, N, I, NC), 3D image filtering
* +12V single power supply, power adapter above 48W is recommended
* OSD display and control
* Supportboot screen
* It supports infrared remote control signal control
* It supports the flipping function
* Audio input function
Special functions: 1) High definition multimedia decoding, Full Hd 1080p support, optional board with 2x4w power amplifier support. 2) Full color boot screen.
3.SUPPORTED DECODING FORMARTS
MOVIE
AVI
MJPEG
MP3, 、WMA, 、AAC,
MP2
PCM
TheMaxResolutionAndFrame Rate:1080p@30fps MaxDataRate:10Mbps
MPEG-4
The MaxResolution And Frame Rate:1080p@30fps MaxDataRate:20Mbps
MPEG-2
XVID
MP4. H.264
MPEG-2
MPEG-4
TS/TRP
MPEG-2
MPG
MPEG-1
MPEG-2
DAT
MPEG-1
MP2
TheMaxResolution:352x288 MaxDataRate:20Mbps
VOB
MPEG-2
TheMaxResolution:720x576 MaxDataRate:20Mbps
RM/RMVB
RV8,RV9,RV10
COOK
TheMaxResolutionAndFrame Rate:1080p@30fps MaxDataRate:10Mbps
JPG
Progressive JPEG
MaxResolution:1024x768
JPEG
Baseline JPEG
MaxResolution:15360x8640
BMP
---
MaxResolution:9600x6400 PixelDepth:1/4/8/16/4/32bpp
PNG
Non-Interlaced
MaxResolution:9600x6400
Interlaced
MaxResolution:1200x800
MUSIC
MP3
---
MP3
SampleRate:32K～48KHz BitRate:32K～320Kbps Channel:Mono/Stereo
WMA
---
WMA
MP4A/AAC
---
AAC
SampleRate:8K～48KHz BitRate:24K～320Kbps Channel:Mono/Stereo
other:
1）Support hard disk, up to 400g
2）The deepest folder can support 30 levels
3）Each folder can support up to 5000 files
4）File system supports hi speed FS, FAT32, FAT16, NTFS (NTFS compressed does not support it)

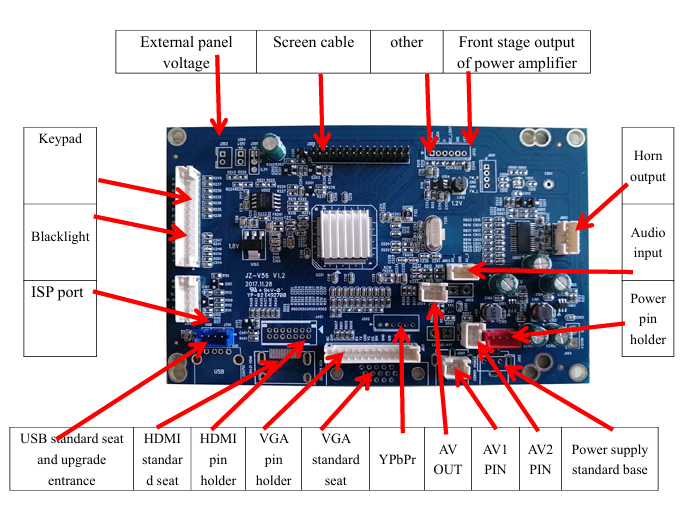

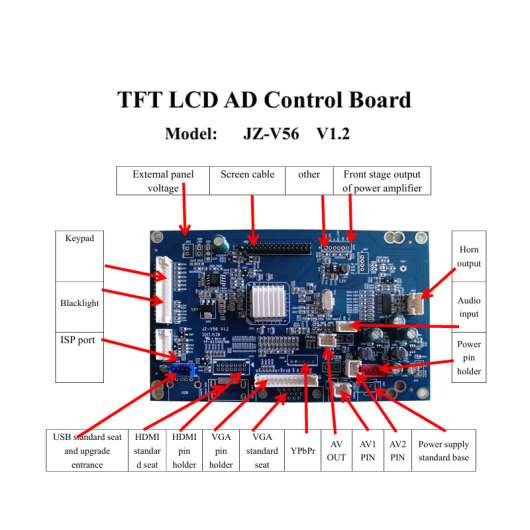

4.CONTROLLER PICTURE

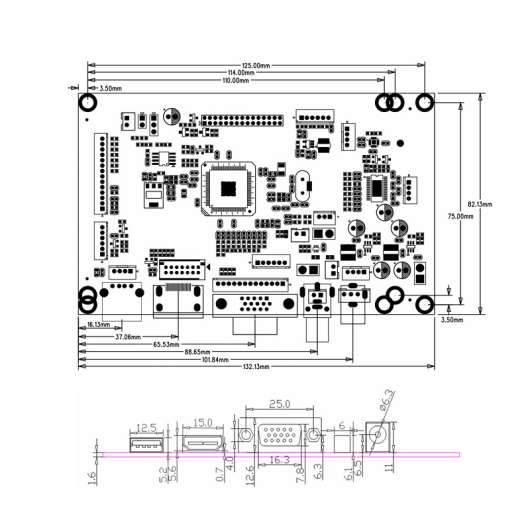

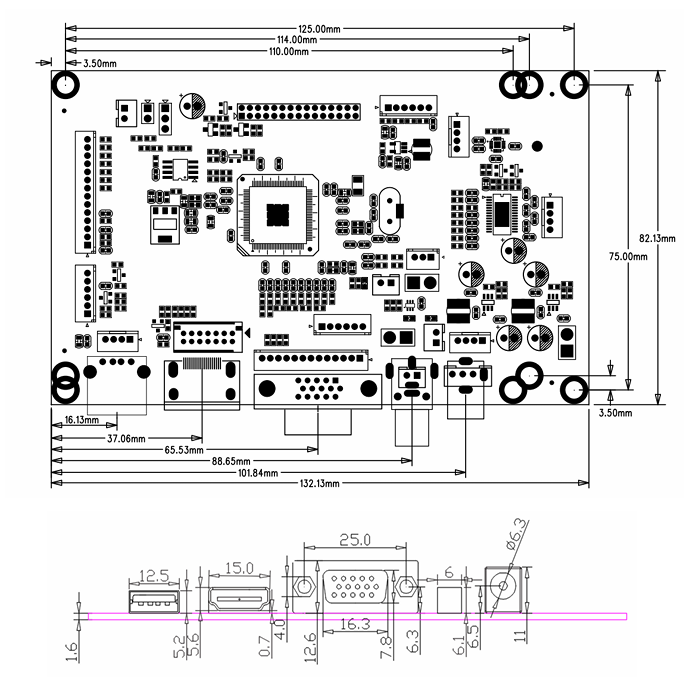

5.CONTROLLERDIMENSIONS
PCB height: 1.6 mm
Length and width: 132.13 x 82.13mm
Total height: 14.5mm
