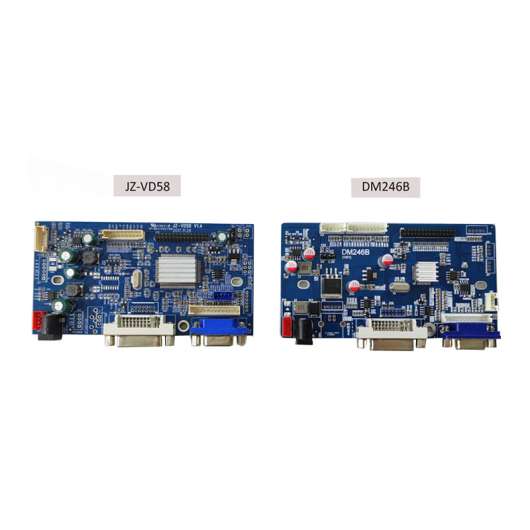

The VD58 controller is a multi interface LCD AD board which support VGA DVI input signals, Base on powerful integrat ed SOC chip, the controller gave us the advantage in display performance & functions
| Model | JZ-VD58 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA+DVI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+60℃ |
| storage temperature | -40℃～+60℃ |
| size | 63 x 123 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.INTRODUCTION
Designed for TFT LCD monitor and other flat panel display application, The VD58 controller is a multi interface LCD AD board which support VGA \ DVI input signals, Base on powerful integrat ed SOC chip, the controller gave us the advantage in display performance & functions.
* 2x2W Audio amplifier
* Support max resolution to : 1920x1080 and 1920x1200
* Input PC signal support: ALL VESA standard
* Support IR remote control
* Support Light sensor control
Important Usage Note
This equipment is for use by developer and integrators. The manufacturer accepts no liability for damage or injury cause by the use of this product. It is the responsibility of the developer, integra tors or the users of this production to:
* Ensure that all necessary and appropriate safety measures are taken
* Obtain suitable regulatory approval as may be required
* Check power setting to all component parts before connection.
Disclaimer
There is no implied or expressed warranty regarding this material.
2.FEATURES
Display:
Resolution：
Max. 1920x1080 1920x1200
Interface：
Single/Dual Channel LVDS
Supported Signals
VGA/RGB：
Maximum resolution : 1920x1080@60Hz Horizontal Freq : 30—120KHz Vertical Freq : 50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
Digital DVI:
Maximum resolution : 1920x1080@60Hz Horizontal Freq : 30—120KHz
Vertical Freq : 50—75Hz
KEY
Power, Menu, Select, Plus, Minus
OSD Type:
Graphic & text
Language Support:
English、Chinese、French、German、Italian、 Spanish
User Functions
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock/Phase/H position/V position/Auto configure
Power
Stand-by
<1W 12Vstb/200mA
Input
12V/dc Note1)
Note1) Max Power is depending on the subject display to be used.

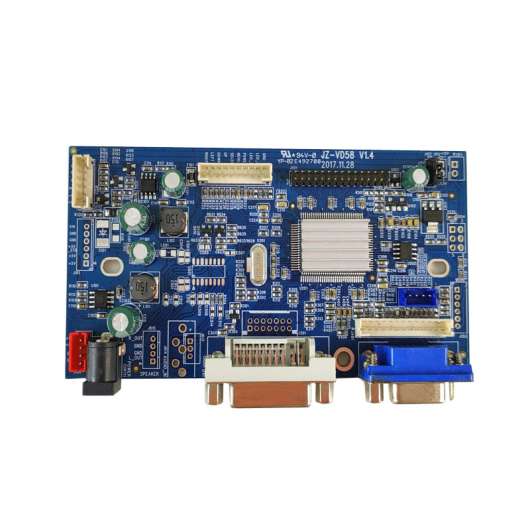

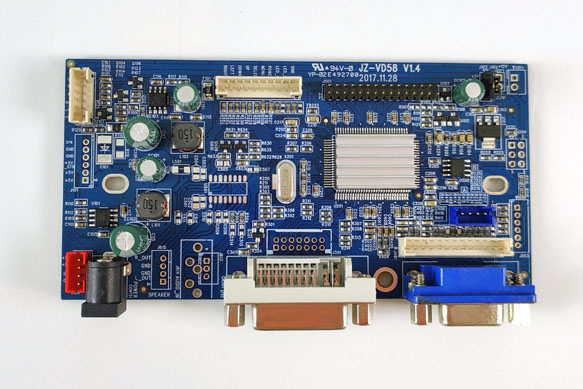

3.PICTURES

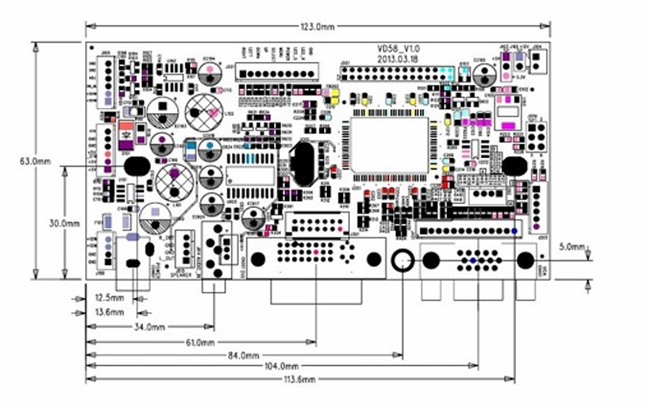

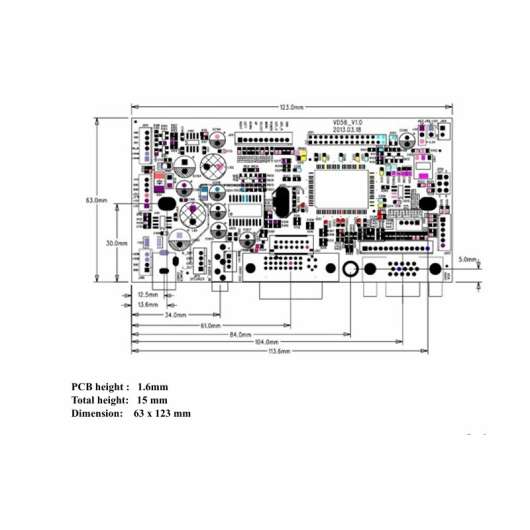

4.DIMENSION
PCB height : 1.6mm
Total height: 15 mm
Dimension: 63 x 123 mm
