The driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel CVBS input, 1-channel CVBS output, 1-channel USB, 1-channel YPbPr and 1-channel HDMI DVI interface, supporting LVDS (6-bit, 8-bit) output
| Model | JZ-V53 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA/HDMI/CVBS/CVBS |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+60℃ |
| storage temperature | -30℃～+70℃ |
| size | 132.13*82.13mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.INTRODUCTION
The driver board is mainly used to support TFT LCD, with 1-channel VGA, 2-channel CVBS input, 1-channel CVBS output, 1-channel USB, 1-channel YPbPr and 1-channel HDMI / DVI interface, supporting LVDS (6-bit, 8-bit) output. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working performance.
*Operating temperature range- 20 to 60 °C
* board with solid-state capacitor, the operating temp is -30~70°c
* board with solid-state capacitor, the operating temp is -30~70°c
*Support the maximum resolution to 1920x1200
*Remote control function
2.GENERALSPECIFICATION
2channels of CVBS signal input, 1 channel of CVBS output, 1 channel of VGA, 1 channel of HDMI/DVI, 1 channel ofYPbPr and 1 channel of USB
VideoSystem support: NTSC m, NTSC-J, NTSC 4.43, pal (B, D, G, h, m, N, I, NC), 3D image filter
Bitmap OSD menu and control
Support boot screen display
Flip/ mirror and rotate function
Audioinput function
2x8W Audio amplifier speake

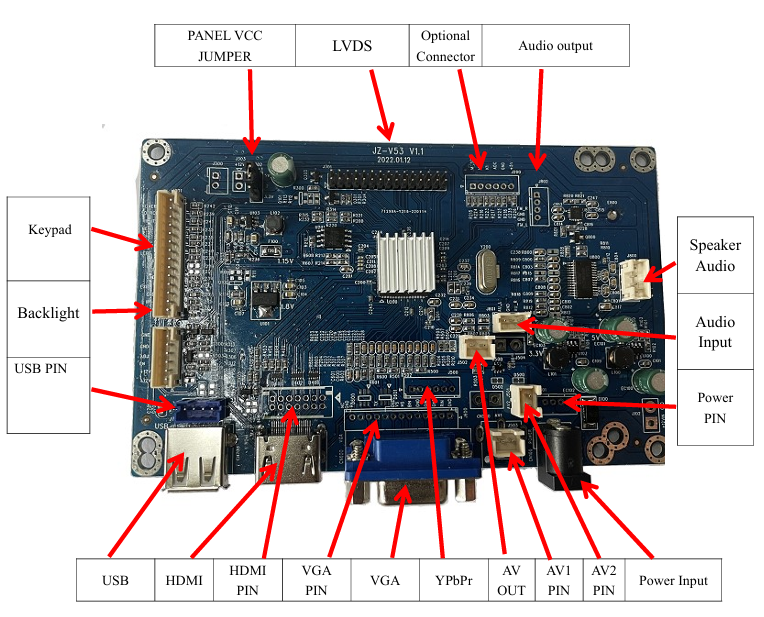

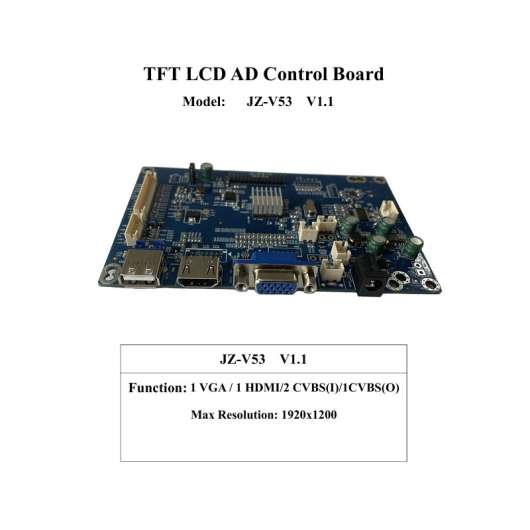

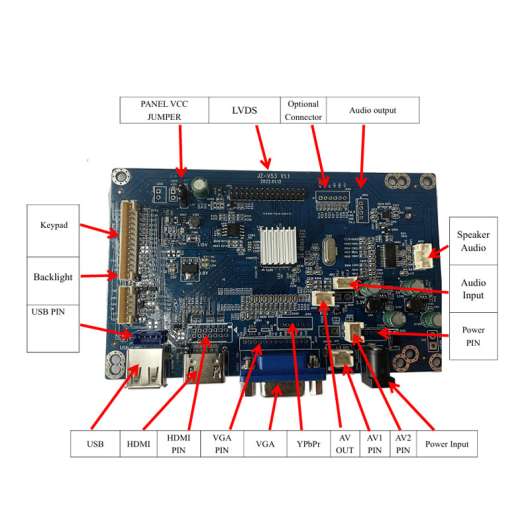

3.CONTROLLER PICTUR

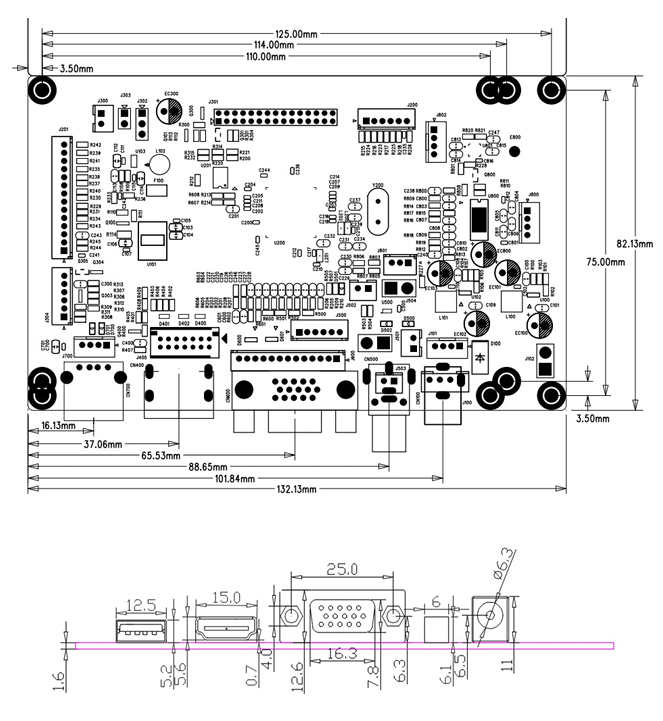

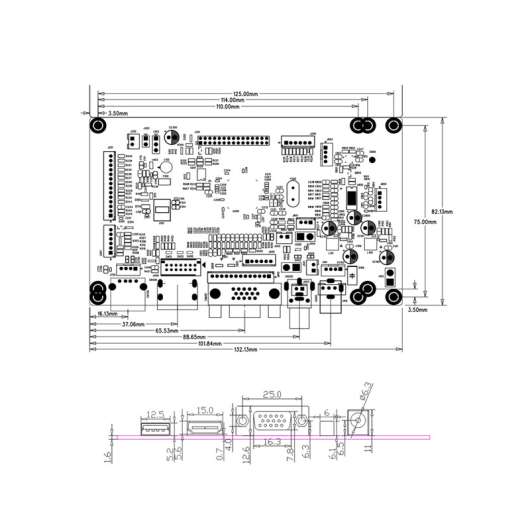

4.CONTROLLERDIMENSIONS
PCBheight: 1.6 mm
Length and width: 132.13 x 82.13mm
Total height: 14.5mm
