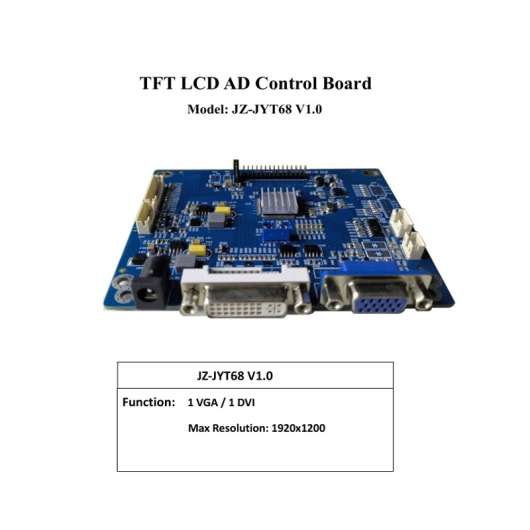

JZ-JYT68 driver board is mainly used to support TFTLCD LCD screens Driver board with 1 VGA and 1 DVI, supporting LVDS transmission Exit the interface Operating Temperature: -40 to 65˚C
| Model | JZ-JYT68 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | VGA、DVI |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40℃～+65℃ |
| storage temperature | -40℃～+65℃ |
| size | 108.0*89.0 mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Product Overview
This driver board is mainly used to support TFTLCD LCD screens. Driver board with 1 VGA and 1 DVI, supporting LVDS transmission Exit the interface. The motherboard adopts MTK signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals.Using high specification components with good working performance.
*Operating Temperature: -40 to 65˚C
*Automatic photosensitive control optional
*Support resolution up to 1920x1200
*Remote control function optional
*Support power amplifier up to 2x2W
*Support serial protocol control
2.PRODUCT CHARACTERISTICS
Display output
Maximum resolution:
Max：1920x1200
Output interface:
Single/Dual LVDS
Support signal
Analog RGB:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
Digital DVI:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
Buttons
Power, Menu, Exit, Plus, Minus
Menu type
Graphical menu
Languages
support Chinese, English, etc. total 16 languages
Function operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
H position
V position
Auto configure
Power Supply
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:
Note1: please test the maximum power consumption according to the actual use

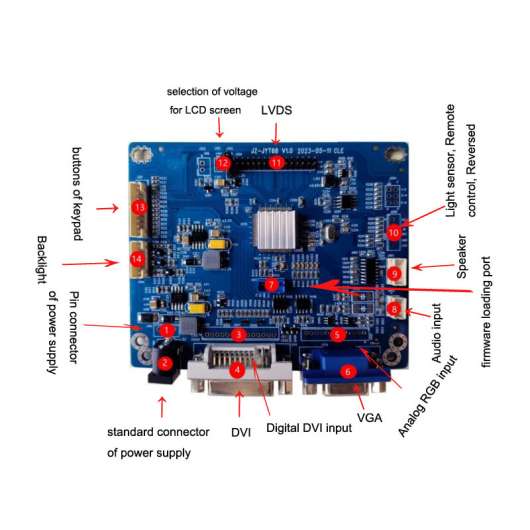

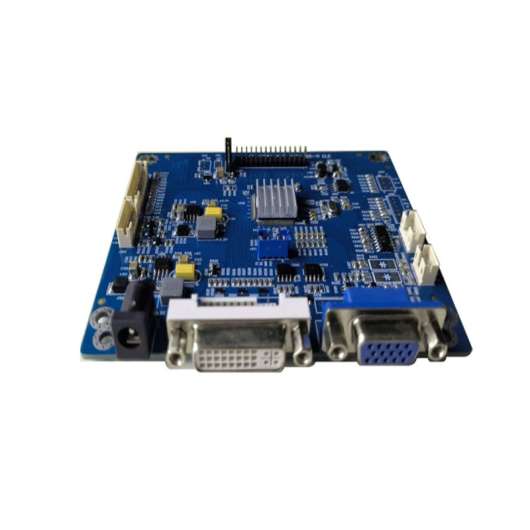

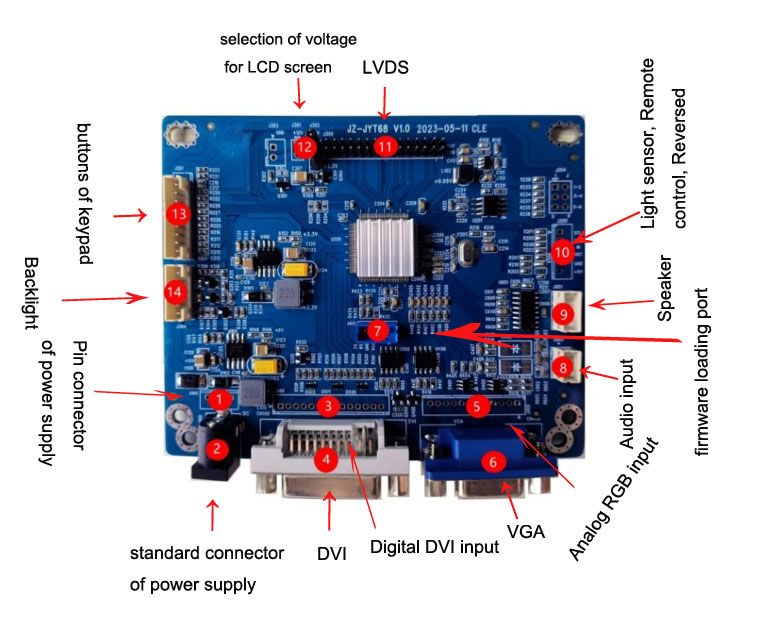

3.PRODUCT PICTURE

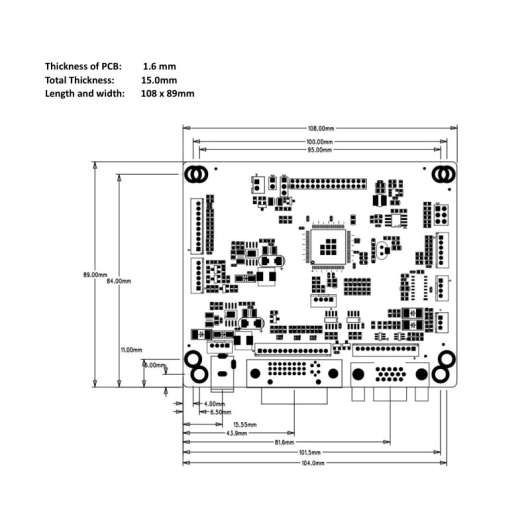

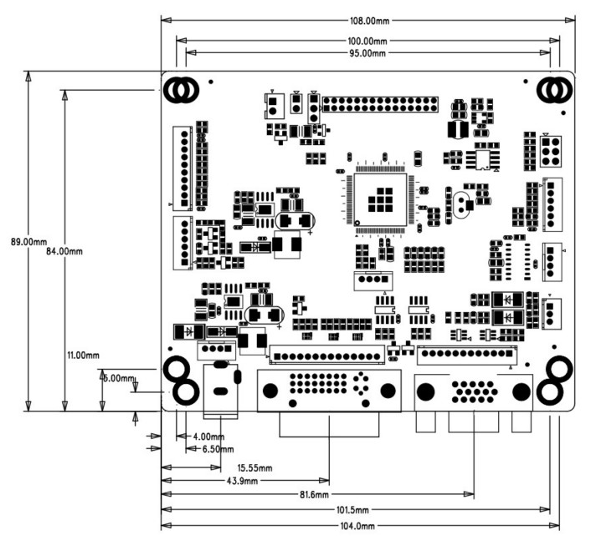

4.DIMENSIONS
Thickness of PCB: 1.6 mm
Total Thickness:15.0mm
Length and width: 108 x 89mm
