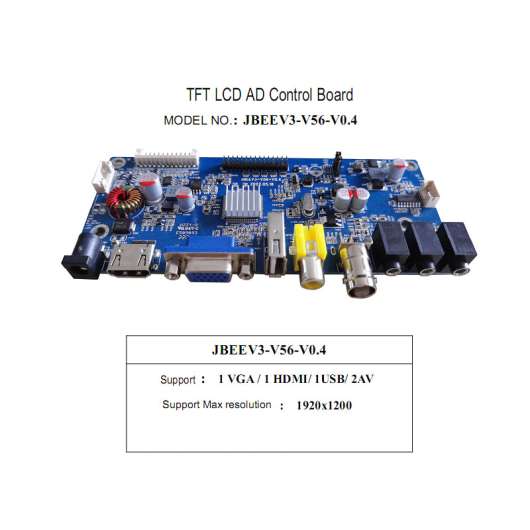

This driver board is mainly used to support TFTLCD LCD screens The driver board comes with 1 VGA, 2 AV inputs, 1 USB, and 1 HDMI interface, supporting LVDS (6 bits, 8 bits) output
| Model | JBEEV3-V56-V0.4 |
| Maximum resolution | 1920x1200 |
| Support size | ≤82" |
| Interface | 1VGA/1HDMI/1USB/2AV |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -20℃～+50℃ |
| storage temperature | -20℃～+50℃ |
| size | 145.04x62.15mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1.OVERVIEW
This driver board is mainly used to support TFT LCD screens. The driver board comes with 1 VGA, 2 AV inputs, 1 USB, 1 HDMI interface, and supports LVDS (6 bit, 8 bit) output. The motherboard adopts Mstar signal processing chip, which has powerful processing functions and can support various specifications of standard and non-standard signals. Using high specification components with good working performance.
*Working temperature range -20 to 50 ℃
*Supports maximum resolution up to 1920x1200
*Can receive remote control function
2.Key Features:
2 AV signal inputs, 1 VGA, 1 HDMI, 1 USB
Standard support: NTSCM, NTSC-J, NTSC4.43, PAL (B, D, G, H, M, N, I, Nc), 3D image filtering
OSD display and control
Support startup screen
Support infrared remote control signal control
Support flipping function
Audio input and output function
Special Features:
1) High definition multimedia decoding, full HD 1080P support, optional 2x8W power amplifier support on the board.
2) Full color startup screen

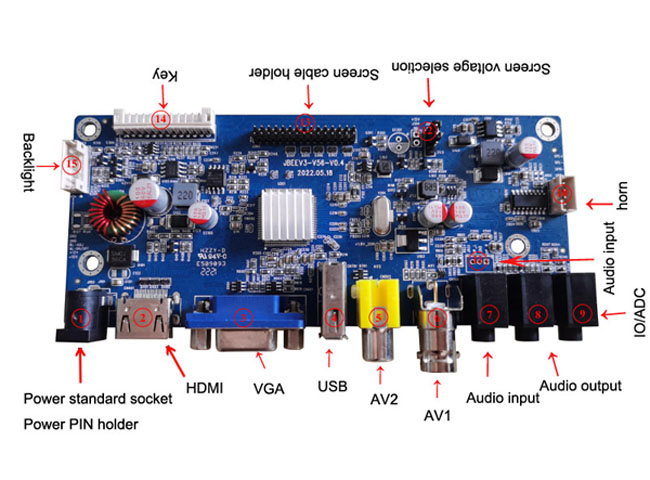

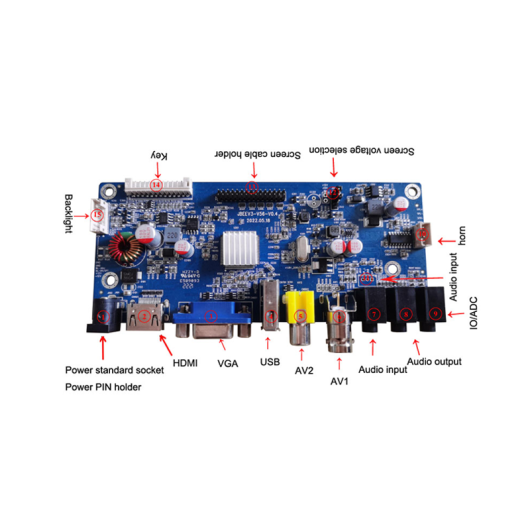

3.PICTURE & LAYOUT

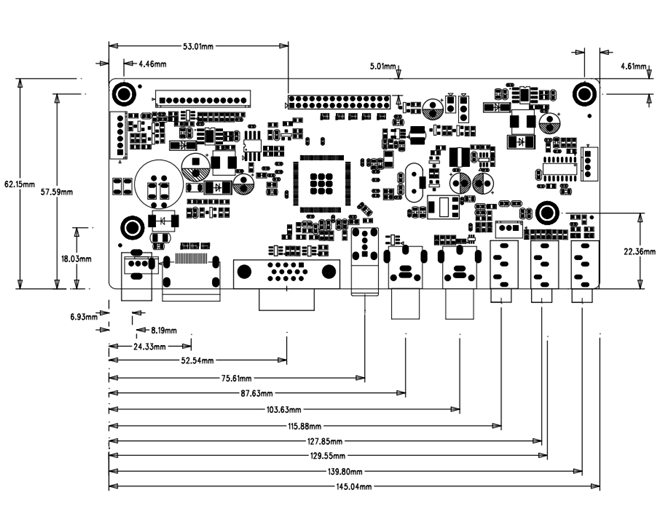

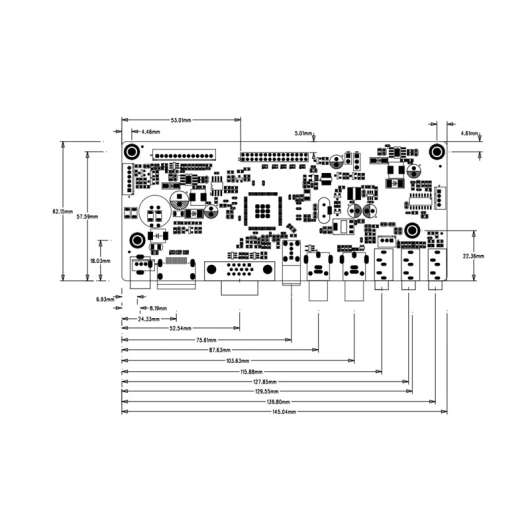

4、Size Description
PCB board thickness: 1.6mm
Total height: 15 mm
Size: 145.04x62.15mm
