JZ-HP58UWV supportsDP, HDMI, LVDS output interface and light sensing function

JZ-HP58UWV supportsDP, HDMI, LVDS output interface and light sensing function

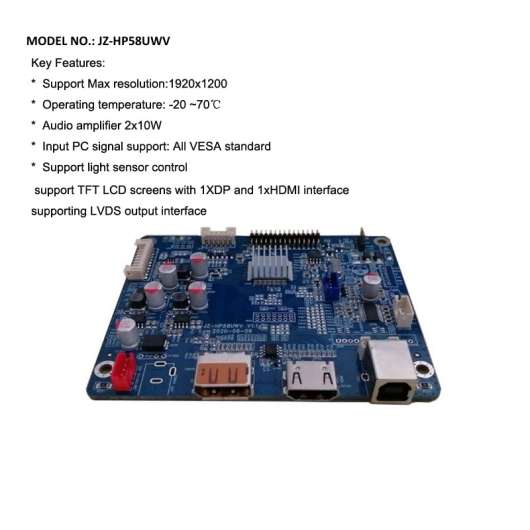

The driver board JZ-HP58UWV is mainly used to support TFT LCD screens with 1XDP and 1xHDMI interface, supporting LVDS output interface Audio amplifier 2x10W ,Input PC signal support: All VESA standard ,Support light sensor control

Model JZ-HP58UWV
Maximum resolution 1920x1200
Support size ≤82"
Interface DP HDMI
Input power <36w
LCD interface LVDS
operation temperature -20℃~+70℃
storage temperature -20℃~+70℃
size 108.0*88.9mm

TFT LCD AD Control Board

 MODEL NO.: JZ-HP58UWV


  1. OVERVIEW

     please check that all the accessories are appropriate. Please pay special attention to LVDS cables specifications.

     The driver board JZ-HP58UWV is mainly used to support TFT LCD screens with 1XDP and 1xHDMI interface, supporting LVDS output interface. The board adopts MSTAR signal processing chip which has powerful processing function and can support all kinds of standard and non-standard signals, using high specification components, it has good working performance.


Key Features:

 *  Support Max resolution:1920x1200

 *  Operating temperature: -20 ~70℃

 *  Audio amplifier 2x10W

 *  Input PC signal support: All VESA standard

 *  Support light sensor control


  2.PARAMETERS

DISPLAY:

Max Resolution

1920x1200

Output Interface

single/dual LVDS

Supported   signals

HDMI

Maximum resolution: 1920x1080@60Hz

Horizontal Freq:   30-120KHz

Vertical Freq:   50-75Hz

Display port

Support 2.7Gbps and 1.62Gbps per lane
  10.8Gbps bandwidth over 4 lanes

KEY


Power, Menu,   Select, Plus, Minus


OSD Type:

                     Graphic & Text

Language support:

English, Chinese

User   Functions


Mode/Brightness/Contrast

Function

Language/Reset/Color   Temp.

PC

Clock/Phase/H   position/V position/Auto configure

Power

Stand-by

<1W    24Vstb/200Ma

Input

24V/dc  note1

Note1): Max power is depending on the subject display to be used.

 EDID data is controllable to change the necessary information. Preferred resolution.

 Optional support DDC/CI

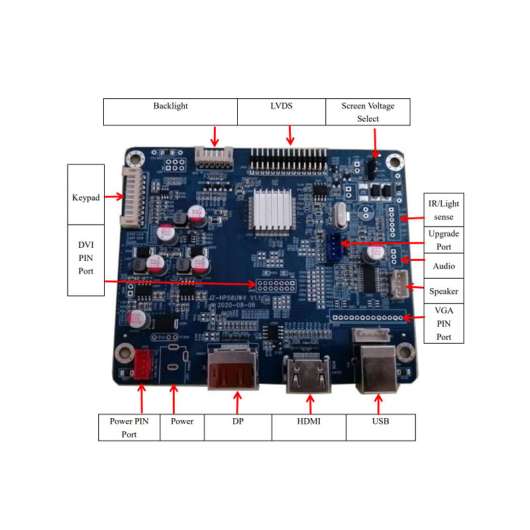

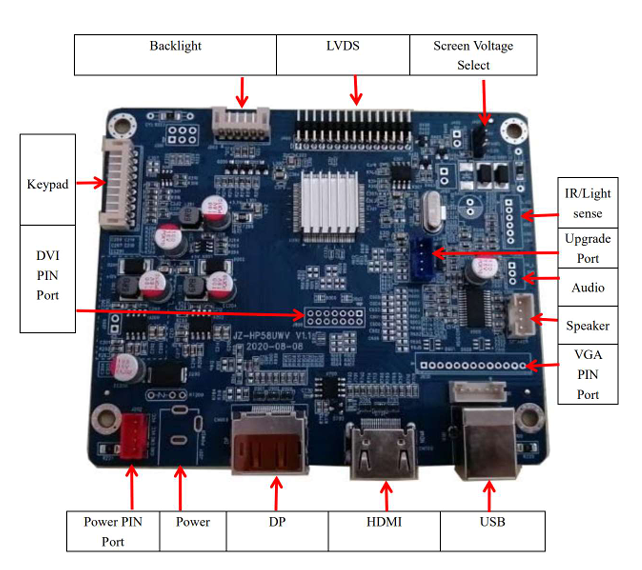

3.PICTURE & LAYOUT

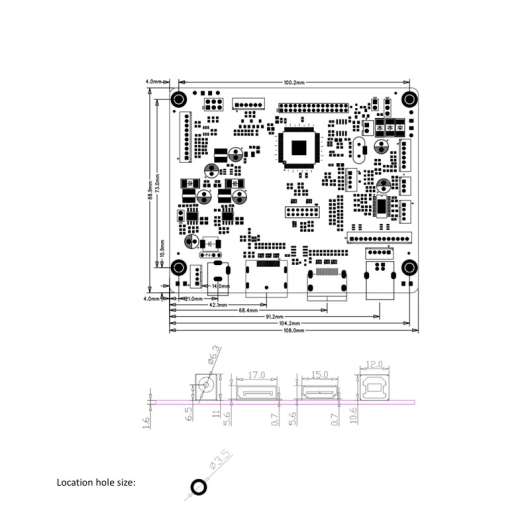

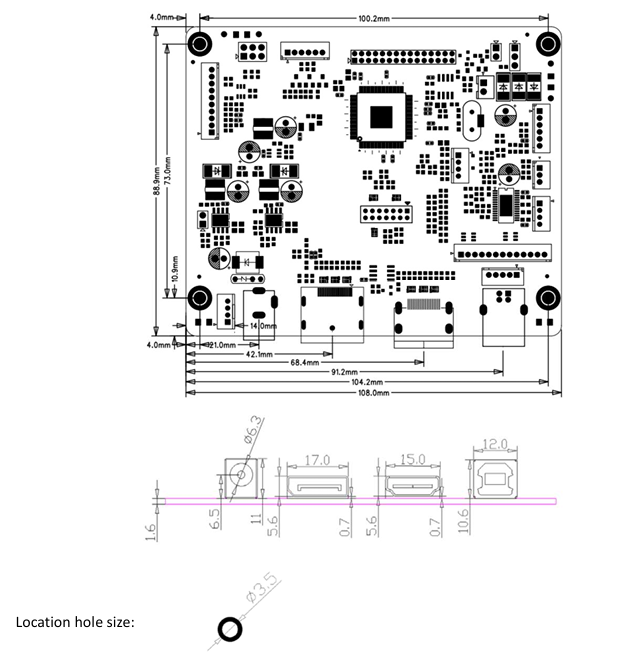

4.DIMENSION

PCB height: 1.6 mm

Length and width: 108.0 x 88.9mm

Total height: 12.6 mm

JZ-HP58UWV  DIMENSION.png
