FPD-UHD High level anti-static (4KV) LCD driver board，supporting a maximum resolution of 4096x2160@60Hz The LCD panel，supporting HDMI DVI DP MHL interfaces, and also integrate 1 analog input port, supporting PC (VGA) input
| Model | FPD-UHD |
| Maximum resolution | 4096x2160 |
| Support size | ≤82" |
| Interface | VGA/DVI/HDMI/DP/VBY1/eDP |
| Input power | ＜36w |
| LCD interface | VBY1 |
| operation temperature | -20℃～+70℃ |
| storage temperature | -20℃～+70℃ |
| size | 172.00x115mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、Product Overview
Before connecting the LCD screen, please confirm that all accessories are compatible. Please pay special attention to the VBY1 cable specifications for screen driving.
This driver board is mainly used to support TFTLCD LCD screens with VBY1 interface. The driver board comes with 1 VGA and 1 DVI connection Port 1 HDMI and 1 DP, supporting VBY1 and eDP output interfaces. The motherboard adopts Mstar signal processing chip for processing Powerful functionality, capable of supporting standard and non-standard signals of various specifications. Using high specification components with good working performance.
Integrate 2 * 2 high-quality image scaling engines, capable of processing 4 at the same time 4K2K@30Hz Video input stream.
Built in VBY1 interface, supporting a maximum resolution of 4096x2160@60Hz The LCD panel.
Supports external power control for large screens and ultra-low standby power consumption.
Support PIP/PBP windows.
Supports 4K eDP signal output and eDP LCD screens in both HBR and HBR2 formats.
Integrate 4 composite digital interfaces, supporting HDMI/DVI/DP/MHL interfaces, and also integrate 1 analog input port, supporting PC (VGA) input.
2、Product Features
display output
Maximum resolution:
Max：4096x2160
Output interface:
VXB1/eDP
Support signal
Simulate RGB:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
number
HDMI/DVI/DP:
Horizontal Freq
30—120KHz
Vertical Freq
50—75Hz
Key
Power, Menu, Exit, Plus, Minus
Menu type
Graphic menu
Language support
Support for multiple languages including Chinese and English
Functional operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
FUNCTION
Language/Reset/Color Temp.
PC
Clock
Phase
Hposition
Vposition
Auto configure
Power Supply
Stand-by
<0.5W 12Vstb/200mA
Input
12V/dc Note1:

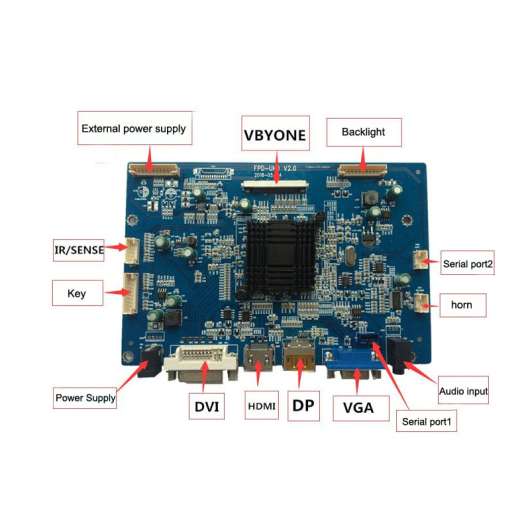

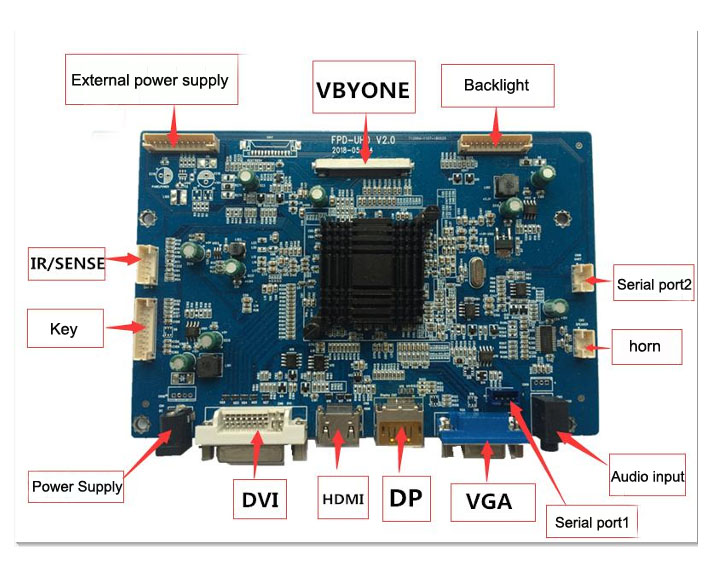

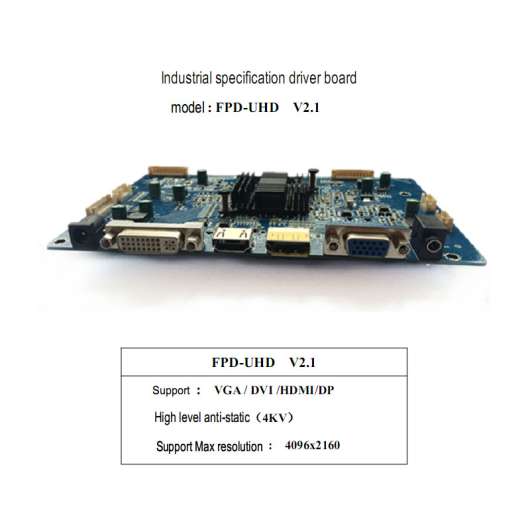

3、Product images

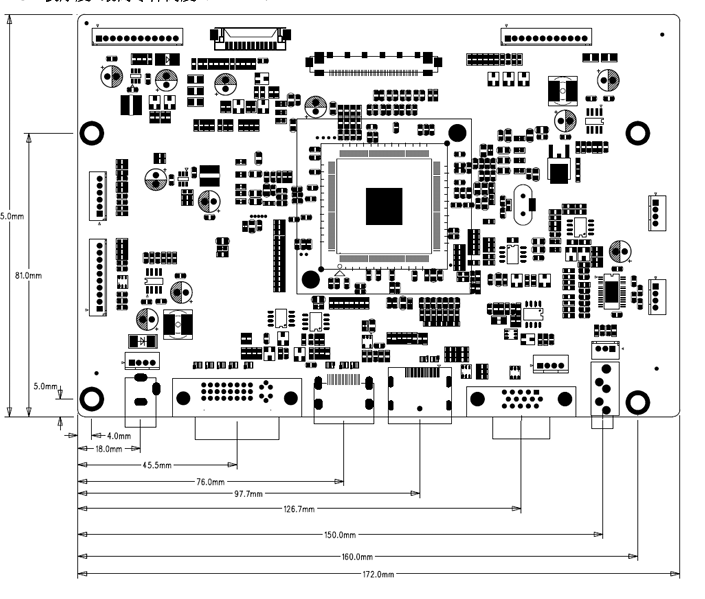

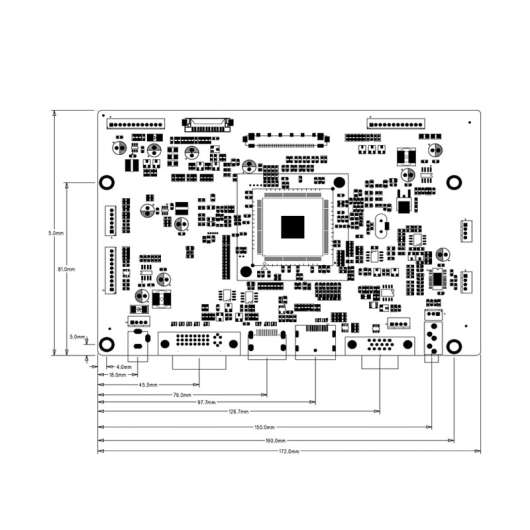

4、Size Description
PCB board thickness: 1.60mm
Total height:
15.00 mm
Size: 172.00x115mm
PCB board thickness+maximum part height:<17mm
