1、OVERVIEWBefore connecting LCD screens, please check that all the accessories are appropriate Please pay special
| Model | FPD-QHD |
| Maximum resolution | 2560x2048 |
| Support size | ≤82" |
| Interface | VGA,DVI,HDMI,DP |
| Input power | ＜36w |
| LCD interface | LVDS |
| operation temperature | -40 ~70℃ |
| storage temperature | -40 ~70℃ |
| size | 164 x 85mm |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、OVERVIEW
Before connecting LCD screens, please check that all the accessories are appropriate. Please pay special attention to LVDS cables specifications.

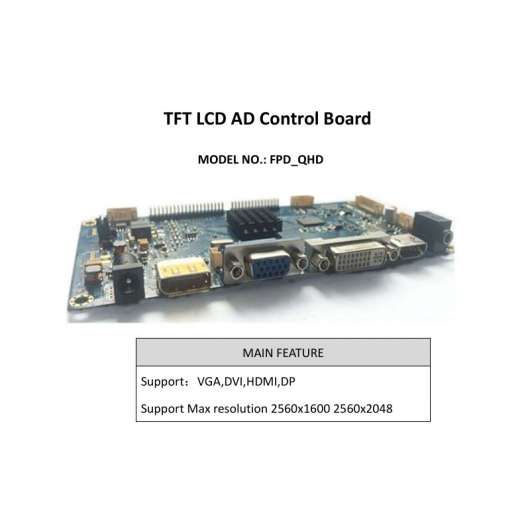

The driver board FPD_QHD is mainly used to support 2K TFT LCD screens. It has 1xVGA, 1xDVI, 1xHDMI, 1xDispayport input interfaces, supports 4 channel LVDS output interfaces. This board adopts high definition signal processing chip with powerful processing function, and can support all kinds of standard and non-standard signals. The driver board FPD_QHD uses high specification components, with good performance.
Key Features:
Max resolution:2560x1600, 2560x1440, 2560x1080, 2560x2048
Operating temperature: -40 ~70℃
Built-in audio amplifier 2x8W
Support Flip, Rotate display ;
Support frame convert ;
Support Gray display
Support HDMI 1.3, Compatible with Displayport V1.2
Automatic photosensitive control (optional)
2.PARAMETERS
OUTPUT
Max Resolution
2560x1600
Output Interface
single/dual LVDS
INPUT SIGNAL
Analog RGB
Horizontal Freq: 30-120KHz Vertical
Freq:50-75KHz
0.7Vp-p@75ohm
Separate / Composite / SOG sync support
Digital DVI
Horizontal Freq: 30-120KHz
Vertical Freq:50-75KHz
Displayport
Supports 2.7Gbps and 1.62Gbps per lane
10.8Gbps bandwidth over 4 lanes
Button
Power, menu, exit, plus, minus
Type of menu
Graphical menu
Language
Support Chinese, English, and other 8 languages
Function operation
Mode/Brightness/Contrast/Saturation/Sharpness/Hue
Function
Language/Reset/Color temp.
PC
Clock/Phase/H position/V position/Auto configure
POWER SUPPLY
Stand-by
< 1W 12Vstb/200mA
Input
12V dc (note 1)
Note: Please test the maximum power consumption according to the actual use

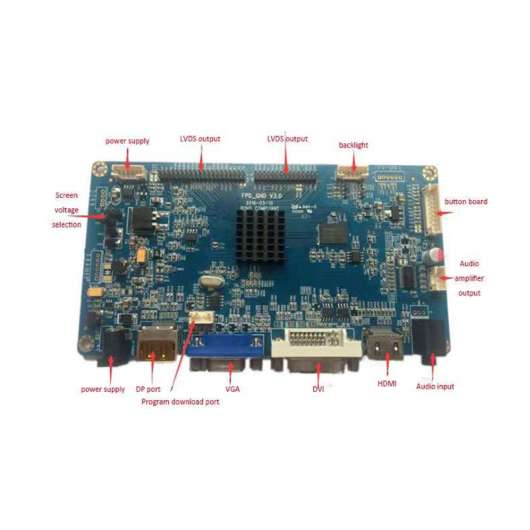

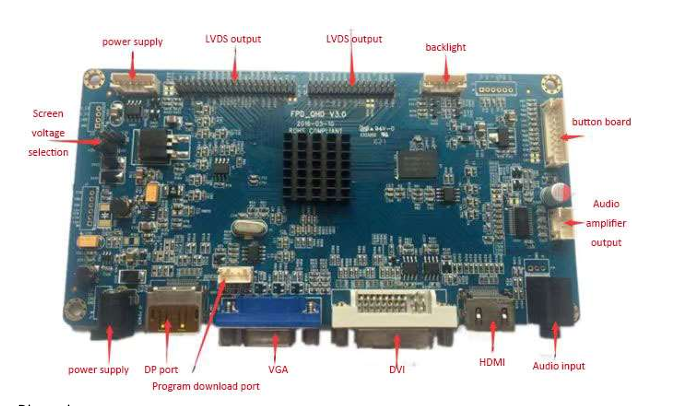

3.PICTURE & LAYOUT

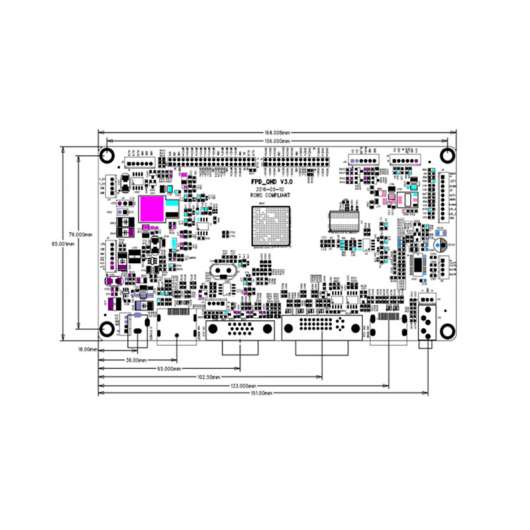

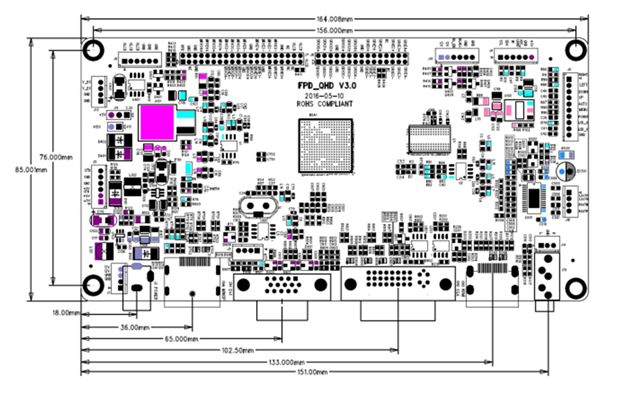

Dimension:
Size：164mm (length) x 85mm (width)
PCB thickness：1.60mm
Total height：16.0mm
