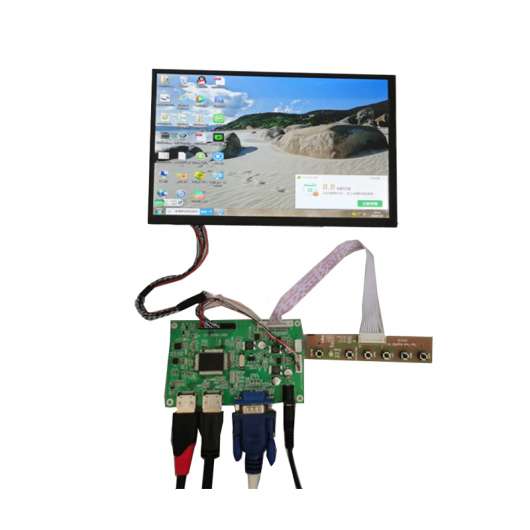

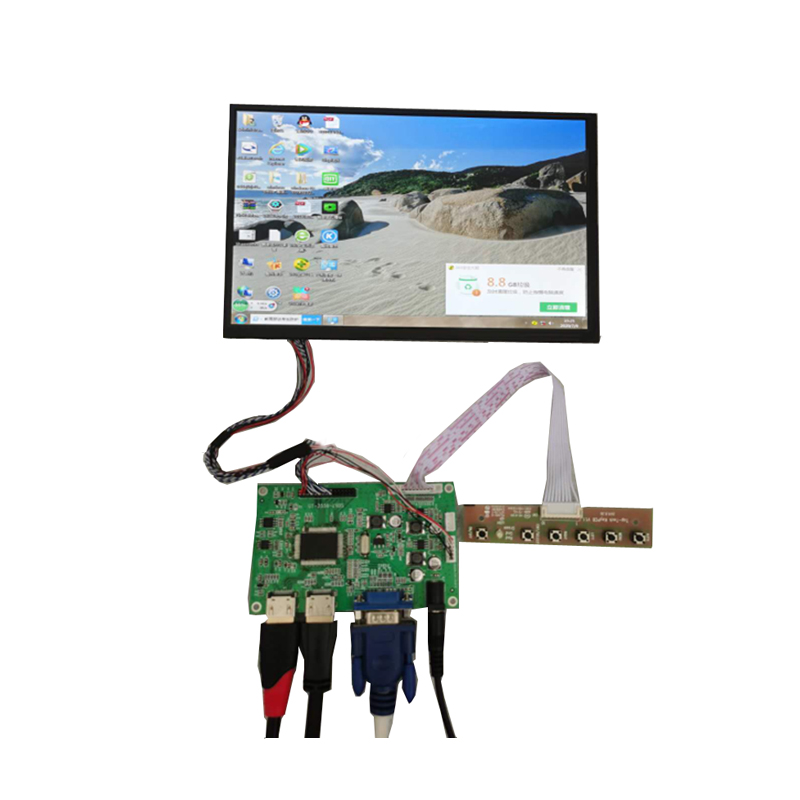

UT-2556-LVDS Multi-Format Video Controller - VGA/HDMI/Video Input

1. Scope of application

 This standard applies to the signal input of HDMI1, HDMI2, VGA, and drives the LCD display driver of the LVDS interface.

2. Product function description

 2.1 VGA, HDMI1, HDMI2, video signal input;

 2.2 Power input: DC +12V

 2.3 Multi-function OSD operation

 2.4 Remote control function (optional)

 2.5 Automatic shutdown without signal (optional)

3. Signal input standard

 3.1 VGA (refresh rate 60~75)

 3.2 HOMI (universal 1.4)

4. Working environment

4.1 Working temperature: -10℃～+70℃

4.2 Working humidity: 90%RH (no condensation)

5. Storage environment

 5.1 Storage temperature: -20℃～+70℃

 5.2 Storage humidity: 90%RH (no condensation)

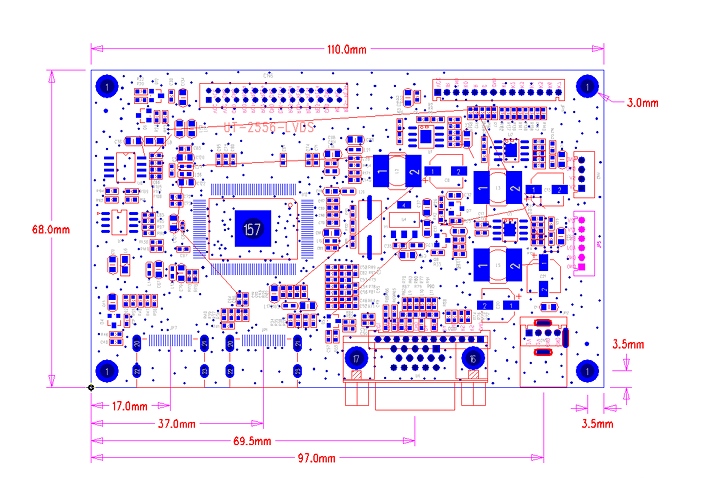

6.Product appearance and physical picture (unit: mm)

Environmental requirements and precautions

 ◆ No squeezing and bending

 ◆ Keep away from static electricity and water

 ◆Relative humidity: 10% ~ 90%

 ◆Storage humidity: 10% ~ 90%

 ◆Storage temperature: -20~ +70℃

 ◆Operation temperature: -20~ +70℃

 ◆Cooling method: ventilation

 ◆The product cannot be exposed to water drops or splashes, and objects filled with liquids such as vases cannot be placed on the device

 ◆ The product needs good ventilation when used

 ◆The specification is for reference only and the actual product shall prevail
