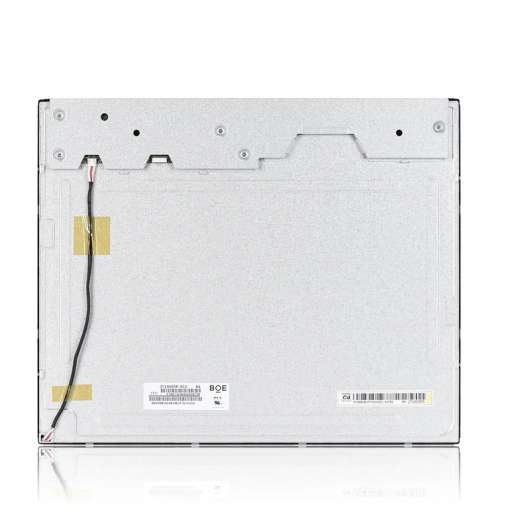

Cheap price IPS BOE 19 inch TFT LCD Screen ZV190E0M-N10 with 1280*1024 and LVDS

1、BOE ZV190E0M-N1 Application DetailsBasic Detail :ManufacturerBOEModel NameZV190E0M-N1Panel Typea-Si TFT-LCD , LCMAnot

Model	ZV190E0M-N10
Brand	BOE
Size	19inch
Resolution	1280*1024
Brightness	450cd/m²
Perspective	89/89/89/89
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

1、BOE ZV190E0M-N1 Application Details

Basic Detail :	Manufacturer	BOE	Model Name	ZV190E0M-N1
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	19.0 inch	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-20 ~ 75 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level	1.05G (10.3 m/s²)
Features :	Wide Color Gamut，Srgb, WLED Backlight，Life≥50K hours，With LED Driver， Upside I/F

2、BOE ZV190E0M-N1 Optical Details

Basic Detail :	Luminance	450 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	84%	sRGB	100% coverage
	Adobe RGB	85% coverage	DCI-P3	87% coverage
	Rec.2020	63% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

3、BOE ZV190E0M-N1 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)×1024 [SXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.0976×0.2928 mm	Pixel Pitch(W×H)	0.2928×0.2928 mm [86PPI]
Physical Size :	Active Viewing (mm)	374.784(W)×299.827(H)	Overall Dim.	396(W)×324(H) mm
Physical Size :	Bezel Opening	378.8(W)×303(H) mm	Depth(mm)	9.9/13.38 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	5:4	Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass	1.80Kgs (Typ.)	Surface

4、BOE ZV190E0M-N1 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No
Total Consumption :	19.2/23.5W (Typ./Max.)

5、BOE ZV190E0M-N1 Interface Detail

Signal Electrical :	Input Current	0.60/1.1A (Typ./Max.)		Input Voltage	5.0V (Typ.)
Signal Electrical :	Consumption	3.0/5.5W (Typ./Max.)		Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Position	Upper right of panel		Type	Connector
Interface Detail :	Brand	Model	Pitch	Pins	Amount	Pin Assignment
Interface Detail :	HRS	DF14H-30P-1.25H(56)	1.25mm	30 pins	1 pcs	LVDS-30P2C8B-200A

6、BOE ZV190E0M-N1 Backlight Details

Lamp Features :

Lamp Type

WLED

Amount

11S4P

Position

Edge light type

Exchange

Lamp Shape

4 strings

Life Time

50K(Min.) Hours

Lamp Electrical :

Input Current

110mA (Typ.)

Input Voltage

34.1/36.3V (Typ./Max.)

Interface Features :

Position

Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Configuration

JST

SM08B-GHH-TB

1.25mm

8pins

1 pcs

Backlight Driver :

With LED Driver

Driver Electrical :

Input Current

1.35/1.666A (Typ./Max.)

Input Voltage

12.0±1.2V

Consumption

16.2/18W (Typ./Max.)

7、BOE ZV190E0M-N1 Carton Details

Box Type	Pcs/Box	Package LWH (mm)	G.W (kgs)
Box Type	11	478×374×413	21.60
