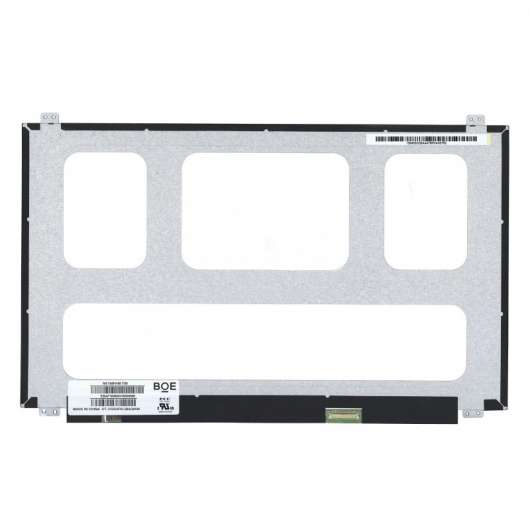

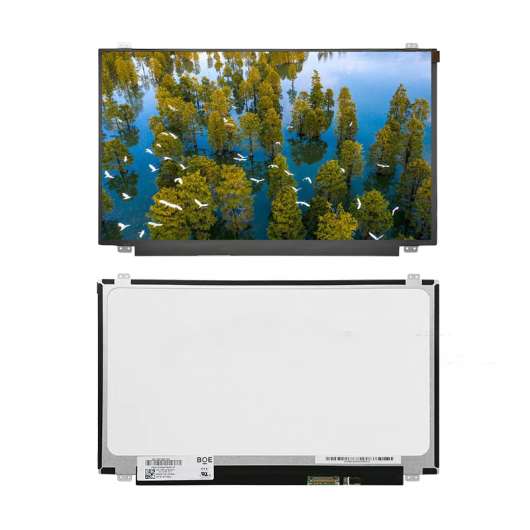

1、BOE NV156FHM-T00 Application DetailsBasic Detail :ManufacturerBOEModel NameNV156FHM-T00Panel Typea-Si TFT-LCD , LCMAn
| Model | NV156FHM-T00 |
| Brand | BOE |
| Size | 15.6inch |
| Resolution | 1920*1080 |
| Brightness | 250cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | eDP |
| Operating Temp | 0 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、BOE NV156FHM-T00 Application Details
Basic Detail :
Manufacturer
BOE
Model Name
NV156FHM-T00
Panel Type
a-Si TFT-LCD , LCM
Another Name
Panel Size
15.6 inch
Designed For
Laptop
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS
RoHS
Vibration Level
1.5G (14.7 m/s²)
Features :
With Touch，WLED Backlight，With LED Driver，Reverse I/F,Glossy
2、BOE NV156FHM-T00 Optical Details
Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.25/1.67 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3、BOE NV156FHM-T00 Mechanical Details
Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.05975×0.17925 mm
Pixel Pitch(W×H)
0.17925×0.17925 mm[141PPI]
Physical Size :
Active Viewing
344.16×193.59 mm (H×V)
Overall Dim.
350.76(W)×223.74(H) mm
Bezel Opening
-
Overall Depth
3.05/3.2 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Touchscreen :
TP Controller
With controller
Control Signal
USB (Win8, Win10)
Touch Points
TP Technology
On-Cell Touch
Fixation :
Face mounting holes (8 pcs) on up, down slugs
Other Detail :
Weight
385g (Max.)
Surface
Glare (Haze 0%), Hard coating (3H)
4、BOE NV156FHM-T00 Electronics Details
Refresh Rate :
60Hz
Reverse Scan :
No
Total Consumption :
5.2W (Max.)
5、BOE NV156FHM-T00 Interface Detail
Signal Electrical :
Input Current
273/636mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.9/1.6W (Typ./Max.)
Signal Interface
eDP (2 Lanes)
Interface Features :
Position
Right of Board
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
I-PEX
20455-040E-02
0.4mm
40 pins
1 pcs
6、BOE NV156FHM-T00 Backlight Details
Lamp Features :
Lamp Type
WLED
Amount
10S4P
Position
Edge light type (Bottom side)
Exchange
-
Lamp Shape
4 strings
Lamp Life
50K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in signal interface
Lamp Electrical :
Voltage Input
Consumption
3.6W (Max.)
Backlight Driver :
With LED Driver
7、BOE NV156FHM-T00 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
38
N/A
N/A
