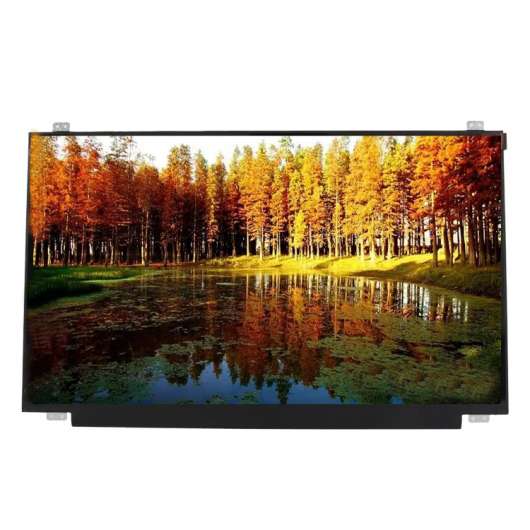

1、BOE NV156FHM-N42 Application DetailsBasic Info :Panel BrandBOEPanel ModelNV156FHM-N42Diagonal Size15 6 "ApplicationLapto
| Model | NV156FHM-N42 |
| Brand | BOE |
| Size | 15.6inch |
| Resolution | 1920*1080 |
| Brightness | 220cd/m2 |
| Perspective | 85/85/85/85 |
| Interface | eDP |
| Operating Temp | 0 ~ 50 °C |
| Production State | In Production |
Hangzhou IDT DISPLAY TECHNOLOGY CO.,LTD is the main agent of Youda AUO LCD screen, CHIMEI LCD screen, Mitsubishi LCD screen, INNOLUX LCD screen, Tianma LCD screen, touch LCD screen and other small ...
Read More
1、BOE NV156FHM-N42 Application Details
Basic Info :
Panel Brand
BOE
Panel Model
NV156FHM-N42
Diagonal Size
15.6"
Application
Laptop，Industrial
Panel Type
a-Si TFT-LCD , LCM
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State
RoHS
Vibration Rating
1.5G (14.7 m/s²)
Specific Features :
WLED Backlight，With LED Driver，Reverse I/F,Matte
2、BOE NV156FHM-N42 Mechanical Details
Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.05975×0.17925 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.17925×0.17925 mm (H×V) [141PPI]
Mechanical Size :
Display Area
344.16×193.59 mm (H×V)
Bezel Area
-
Outline Dim.
359.5×223.8 mm (H×V)
Outline Depth
3.05/3.2 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Face mounting holes (8 pcs) on up, down slugs
Other Features :
Weight
380g (Max.)
Surface
Antiglare, Hard coating (3H)
3、BOE NV156FHM-N42 Optical Details
Basic Information :
Brightness
220 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
ADS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
1.25/1.54 (Max.)(5/13 points)
1931 Color Gamut :
NTSC Ratio
45%
sRGB
62% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
4、BOE NV156FHM-N42 Electronics Details
Frame Frequency :
60Hz
Reverse Scan :
No
Power Consumption :
3.86W (Max.)
5、BOE NV156FHM-N42 Backlight Details
Back-light Features :
Lamp Type
WLED
Amount
10S4P
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings
Position
Edge light type
Interface Features :
Type
Included in signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
-
Consumption
2.98W (Max.)
6、BOE NV156FHM-N42 Interface Detail
Signal Systerm :
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
267/485mA (Typ./Max.)
Consumption
0.88/1.6W (Typ./Max.)
Interface Features :
Type
Connector
Position
Right of Board
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
STM
MSAK24025P30
0.5 mm
30 pins
1 pcs
EDP-30P2L-020V
7、BOE NV156FHM-N42 Carton Details
Box Type
Pcs/Box
Package LWH (mm)
G.W (kgs)
30
428×373×288
13.66
