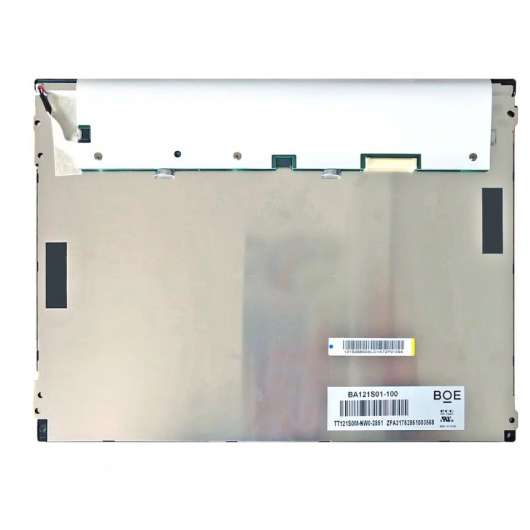

BOE 12.1 inch 4:3 display BA121S01-100 TFT LCD panel with AD board BA121S01-100

BOE BA121S01-100 Application DetailsBasic Detail :Panel BrandBOEModel NameBA121S01-100Panel Typea-Si TFT-LCD , LCMAnoth

Model	BA121S01-100
Brand	BOE
Size	12.1inch
Resolution	800*600
Brightness	400 cd/m² (Typ.)
Perspective	80/80/65/75 (Typ.)(
Interface	LVDS
Operating Temp	-20 ~ 70 °C
Production State	In Production

Click For Price

BOE BA121S01-100 Application Details

Basic Detail :	Panel Brand	BOE	Model Name	BA121S01-100
	Panel Type	a-Si TFT-LCD , LCM	Another Name
	Panel Size	12.1”	Designed For	Industrial
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	RoHS	RoHS	Vibration Level
Features :	WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F, 180°Reverse，6/8bit

BOE BA121S01-100 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Good View at	12 o'clock	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/65/75 (Typ.)(CR≥10)	Operating Mode	TN, Normally White, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Display Colors	262K/16.7M (6-bit / 6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Variation	1.25/1.43 (Typ./max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	58%	sRGB	81% coverage
	Adobe RGB	60% coverage	DCI-P3	60% coverage
	Rec.2020	43% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE BA121S01-100 Mechanical Details

Pixel Features :	Number of Pixel	800(RGB)*600 [SVGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch	0.10250.3075 mm (HV)	Pixel Pitch (W×H)	0.30750.3075 mm (HV) [82PPI]
Physical Size :	Active Viewing(mm)	246184.5 mm (HV)	Bezel Area (mm)	249.05(W)*188.30(H) mm
Physical Size :	Outline Dim. (mm)	279209 mm (HV)	Outline Depth	5.73/9.3 (Typ./Max.) mm
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	4:3 (H:V)	Orientation	Landscape type
Holes & Brackets :	Face mounting holes (6-Φ3.4) on left, right bezel
Other Features :	Weight	500g (Max.)	Surface	-

BOE BA121S01-100 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (180°)
Power Consumption :	6.7W (Typ.)
D-IC Detail :	Built-in HX8245-C01 + HX8677-G
Time Controller (T-CON) :	Embedded T-CON: HX8841

BOE BA121S01-100 Interface Details

Signal Systerm :		LVDS (1 ch,6/ 8-bit)
Signal Electrical :	Voltage Input			3.3V (Typ.)		Current Input	340/390mA (Typ./Max.)
	Consumption			-
Interface Features :	Position			Rear		Physical Type	Connector
Interface Detail :	Brand		Model		Pin Pitch	Pins	Amount	Pin Assignment
	STM		MSB240420E		1.25mm	20pins	1 pcs	LVDS-20P1C8B-080B

BOE BA121S01-100 Backlight Details

Lamp Features :

Lamp Type

WLED

Quantity

Position

Edge light type

Exchange

Lamp Shape

Lamp Life

50K(Min.) (Hours)

Lamp Electrical :

Voltage Supply

27.0/28.8V (Typ./Max.)

Current Supply

160mA (Typ.)

Consumption

4.32/4.61W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Lamp Driver

With LED Driver

Interface Detail :

Brand

Model

Amount

Pin Pitch

Pin Amount

Pin Assignment

E&T

3808K-F05N-02R

1 pcs

1.25 mm

5 pins

Driver Electrical :

Voltage Input

12.0V

Current Input

BOE BA121S01-100 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (LWH)
Package Carton :	25 pcs / box	-	580400285 mm
